TrendNet Netzwerkkamera TV-IP1514PI LAN IP CCTV camera 2592 x 1920 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Bullet camera;2592 x 1920 p;TrendNetNetzwerkkamera;TV-IP1514PIOutdoors, Indoors
Highlights & Details
- 5MP HD video (2592 x 1920) with 20 fps
- Night vision IR-LEDs for night vision up to 30 m.
- Micro SD card slot
- Built-in microphone for one-way audio
- Outdoor IP66 casing
- ONVIF profile S
Technical specifications
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
IR LEDs
Microphone
ONVIF support
- Camera type
Bullet camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2592 x 1920 p
- Sensor size
9.4 mm (1/2.7")
- Sensor type
CMOS
Manufacturer-specific
- Focal length
3,6 mm
- Max. viewing angle hor.
81°
- Vertical viewing angle
56°
- Vertical viewing angle
106°
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.01 lx
- IR range (max.)
30 m
- Used at
Outdoors
Indoors
- Type
microSD card (up to 256 GB)
- Width
70 mm
- Height
70 mm
- Depth
150 mm
- Dim
(W x H x D) 70 x 70 x 150 mm
- Weight
389 g
- F-numbers
F1.6
- Factory colour
White
IP67
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3357089 TrendNet Netzwerkkamera TV-IP1514PI LAN IP CCTV camera 2592 x 1920 p
User & Safety Instructions
User & Safety Instructions 3357089 TrendNet Netzwerkkamera TV-IP1514PI LAN IP CCTV camera 2592 x 1920 p
Description
The 5MP H.265 PoE-IR fixed tower network camera for indoor and outdoor use of TrendNet, model TV-IP1515PI, offers day and night monitoring with a night-vision range of up to 30 meters. This fixed tower network camera provides year-round surveillance with a weatherproof IP66 housing for outdoor use. It records up to 5 MP HD video at 20 frames per second in the space-saving H.265 compression format. Show live videos of the 5MP tower network camera easily on your mobile device with our free Sentinel Mobile APP or on your PC with our free View Manager desktop camera video management software.
This text is machine translated.
This text is machine translated.
Features
- Simple cloud P2P QR code installation
- Digital Wide Dynamic Range image contrast adjustment
- Save installation costs thanks to Power over Ethernet (PoE)
- Programmable motion detection recording and e-mail notification
- Micro SD card slot (up to 256 GB)
- Free Sentinel iOS® and AndroidTM mobile applications
- Free View Manager PC software
- NDAA/TAA compliant (US and Canada only).

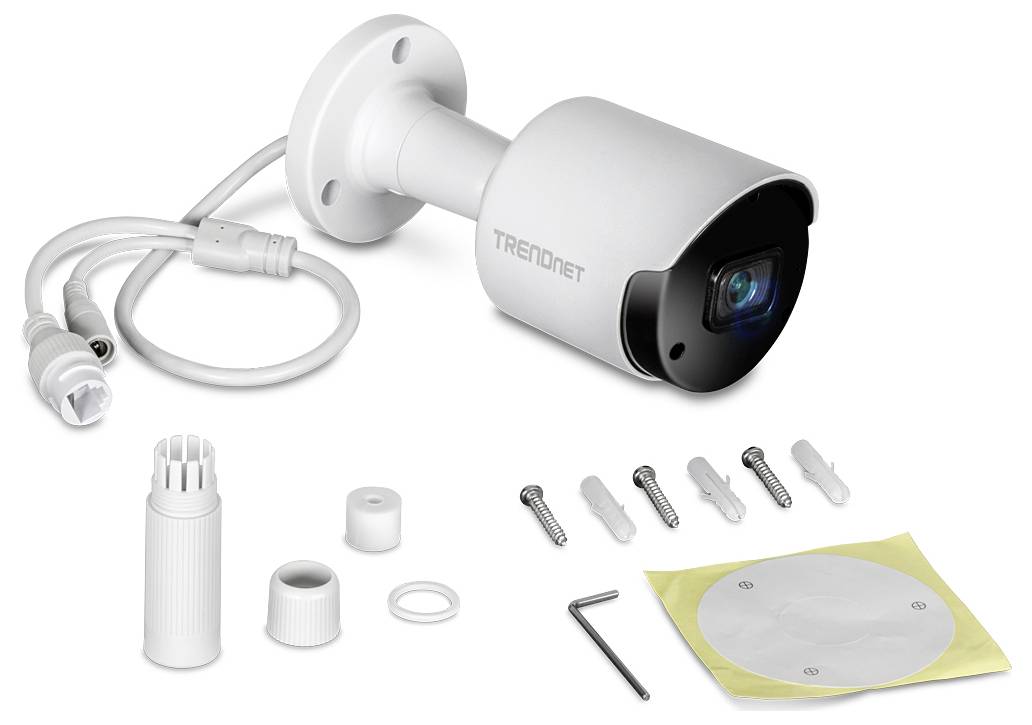

Scope of delivery
- TV-IP1514PI
- Weather sealing
- User manual for quick installation
- Camera mounting hardware.
Hints
Memory card not included
