TrendNet TI-SG704 10G PoE+ splitter industrial networking PoE splitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
The TrendNet 10G PoE+ industrial splitter, model TI-SG704, connects non-PoE devices via a 10G PoE++ connection and divides them into s...
- Industrial 10G PoE+ Splitter
- Power supply of a non-PoE device up to 100 m
- Extreme operating temperature range
- IEEE 802.3bt-compatible

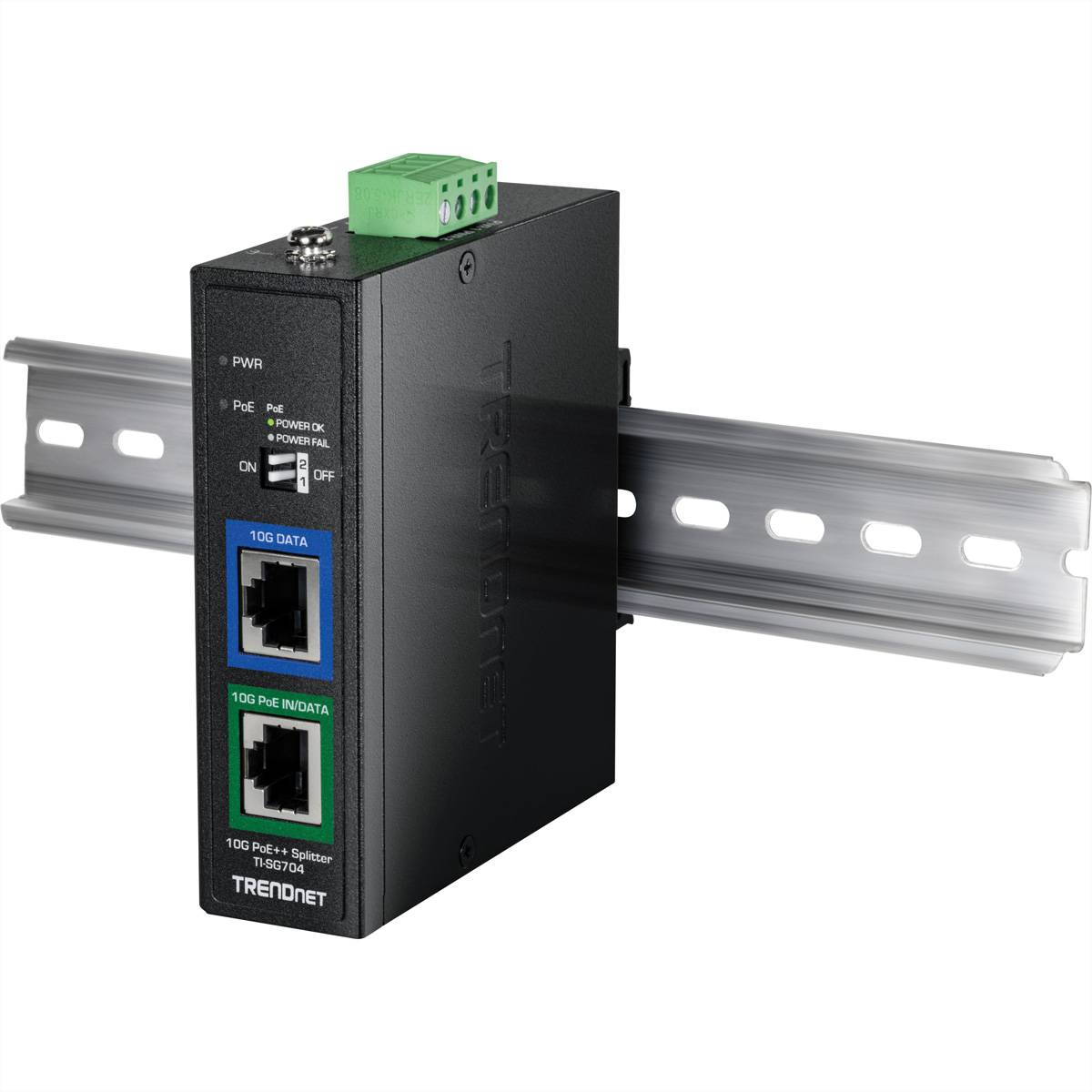

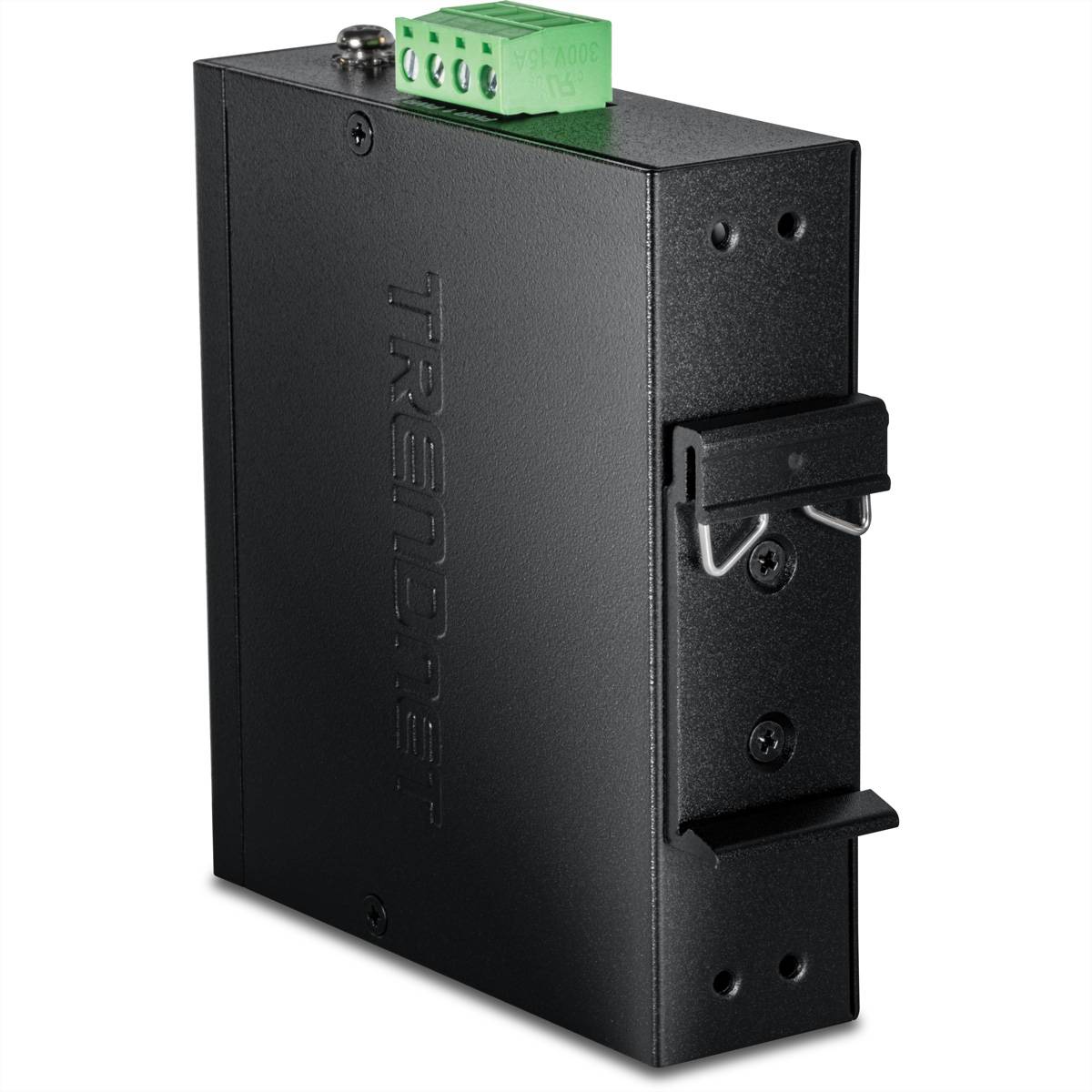

- DIN rail mounting
Technical specifications
- Product group: Industrial Networking
- Product type: PoE splitter
- Colour, black
- 10 Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000/2500/10000
- Total number of ports: 2
- 10 Gigabit Ethernet ports RJ-45: 1
- Power over Ethernet (PoE) PoE+ (IEEE 802.3bt)
- Number of PoE ports 1
- Design: Top hat rail
- Protection class (IP code): IP50
- Power supply: Power over Ethernet (PoE)
- Min. Operating temperature -40 °C
- Max. operating temperature: 75 °C
- Height: 28 mm
- Width: 99 mm
- Depth: 90 mm
- Weight: 432 g.
- Packaging height 40 mm
- Package width 140 mm
- Packaging depth 160 mm
- Package weight: 0,488 kg
- Gross weight: 0.49
- Product type
PoE splitter
- Weight
0.49
- Type
TRENDnet TI-SG704 10G PoE++ Splitter Ind
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798837 TrendNet TI-SG704 10G PoE+ splitter industrial networking PoE splitter
User & Safety Instructions
User & Safety Instructions 3798837 TrendNet TI-SG704 10G PoE+ splitter industrial networking PoE splitter
Description
TrendNet TI-SG704 10G PoE+ splitter industrial networking PoE splitter
This text is machine translated.
This text is machine translated.
Scope of delivery
- TI-SG704, removable terminal strip, DIN-rail and wall mounting kit
