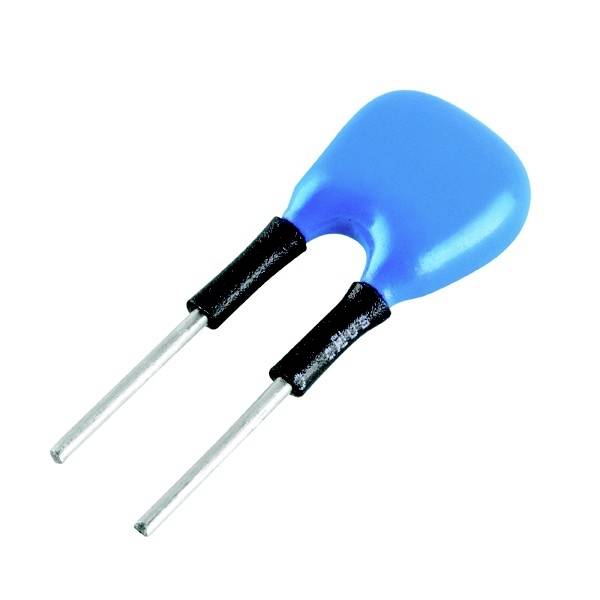

Tridonic I-SELECT2PLUGMAXBL I-Select resistor 0.25 W 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
I-Select resistor
- Dim
(W x H) 5.5 mm x 7.5 mm
- Max. power
0.25 W
- Power range
0.25 W (max)
- Width
5.5 mm
- Height
7.5 mm
Other
TRUE
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2745901 Tridonic I-SELECT2PLUGMAXBL I-Select resistor 0.25 W 1 pc(s)
Description
Prefabricated resistance for current setting ¿ Compatible with LED driver with I-select 2 interface smaller than br / greater than not compatible with I-SELECT (generation 1) ¿ Resistance is isolated ¿ Resistance power 0.25 W ¿ Current tolerance ± 2 % additional to output current tolerance ¿ Compatible with the PRE and EXC series LED drivers ¿ R [kO] = 5 V / I_out [mA] x 1000 ¿ Use of E96 resistors ¿ Resistance tolerance 1 % less than br/greater than power 0.1 Required less than br / greater than the base insulation ¿ If a resistance value is used outside the specified range, the minimum current (at too high resistance value) or the maximum current (if the resistance value is too low) is set automatically
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
