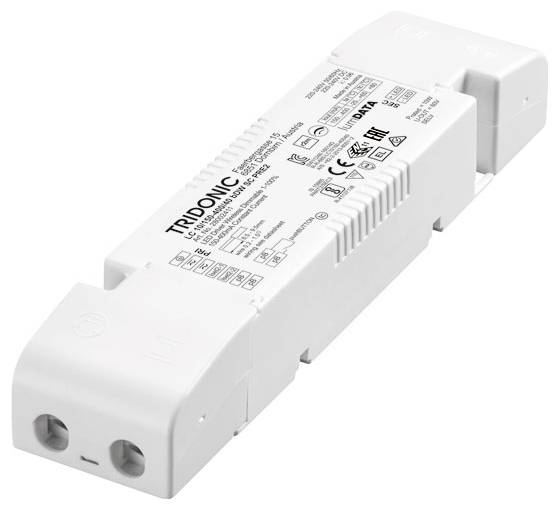

Tridonic LC 10W 150–400mA bDW SC PRE2 LED driver 10 W 0.4 A 15 - 40 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LC 10W 150–400mA bDW SC PRE2
- 15 - 40 V
- 0.4 A
Technical specifications
- Number of max. B16 circuit breakers: 38
- Number of max. at C16 circuit breakers: 64
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Casambi
- Product type
LED driver
- Dim
(L x W x H) 130 x 43 x 30 mm
- Output voltage (max.)
40 V
- Output voltage (min.)
15 V
- Max. output current
0.4 A
- Output current (max.) - rounded
400 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
10 W
- No. of outputs
1 x
- Output current (min.)
0.4 A
- Power range
10 W (max)
- Width
43 mm
- Height
30 mm
- Length
130 mm
- Max. temperature
+65 °C
- Min. temperature
-25 °C
- Efficiency
82 %
Documents & Downloads
Datasheet
Datasheet 3435703 Tridonic LC 10W 150–400mA bDW SC PRE2 LED driver 10 W 0.4 A 15 - 40 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435703 Tridonic LC 10W 150–400mA bDW SC PRE2 LED driver 10 W 0.4 A 15 - 40 V adjustable 1 pc(s)
Description
DC-compatible, output current can be selected, emergency light operation device, output current can be programmed
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
