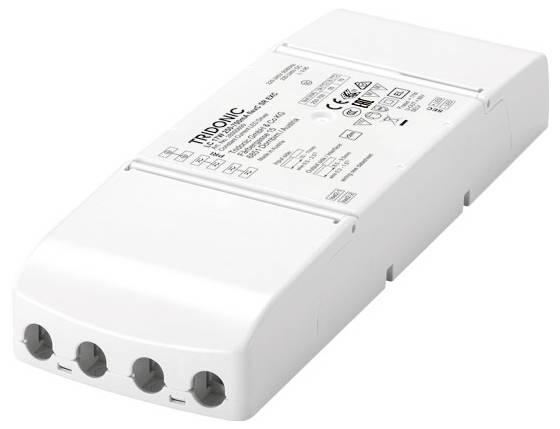

Tridonic LC 10W 150-400mA flexC SR EXC LED driver Constant current 10 W 0.4 A 15 - 40 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic LC 10/17/25/45/60/100W flexC SR
- Constant current
- 15 - 40 V
- 0.4 A
Technical specifications
- Number of max. B16 circuit breakers: 37
- Number of max. at C16 circuit breakers: 61
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 200 x 70 x 31 mm
- Output voltage (max.)
40 V
- Output voltage (min.)
15 V
- Max. output current
0.4 A
- Output current (max.) - rounded
400 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
10 W
- No. of outputs
1 x
- Output current (min.)
0.4 A
- Power range
10 W (max)
- Width
70 mm
- Height
31 mm
- Length
200 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Efficiency
81 %
Documents & Downloads
Datasheet
Datasheet 3435694 Tridonic LC 10W 150-400mA flexC SR EXC LED driver Constant current 10 W 0.4 A 15 - 40 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435694 Tridonic LC 10W 150-400mA flexC SR EXC LED driver Constant current 10 W 0.4 A 15 - 40 V adjustable 1 pc(s)
Description
Output current selectable, emergency light operation device, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
