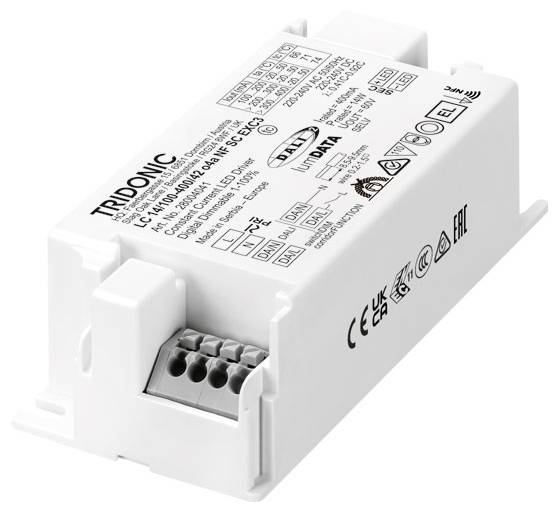

Tridonic LC 14W 100–400mA o4a NFC SC EXC LED driver Constant current 14 W 0.4 A 7.5 - 42 V dimmable, adjustable, DALI 1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TRIDONIC LC 14/28/38W O4A NFC SC EXC3 LE
- Constant current
- 7.5 - 42 V
- 0.4 A
Technical specifications
- Number of max. B16 circuit breakers: 139
- Number of max. at C16 circuit breakers: 139
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 97 x 43 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
7.5 V
- Max. output current
0.4 A
- Output current (max.) - rounded
400 mA
- LED driver features
dimmable
adjustable
DALI
IP20
- Connection
Jack connector
- Max. power
14 W
- No. of outputs
1 x
- Output current (min.)
0.4 A
- Power range
14 W (max)
- Width
43 mm
- Height
30 mm
- Length
97 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
83 %
Documents & Downloads
Datasheet
Datasheet 3435725 Tridonic LC 14W 100–400mA o4a NFC SC EXC LED driver Constant current 14 W 0.4 A 7.5 - 42 V dimmable, adjustable, DALI 1
User & Safety Instructions
User & Safety Instructions 3435725 Tridonic LC 14W 100–400mA o4a NFC SC EXC LED driver Constant current 14 W 0.4 A 7.5 - 42 V dimmable, adjustable, DALI 1
Description
Emergency light operating device, NFC function, DC compatible, output current selectable, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
