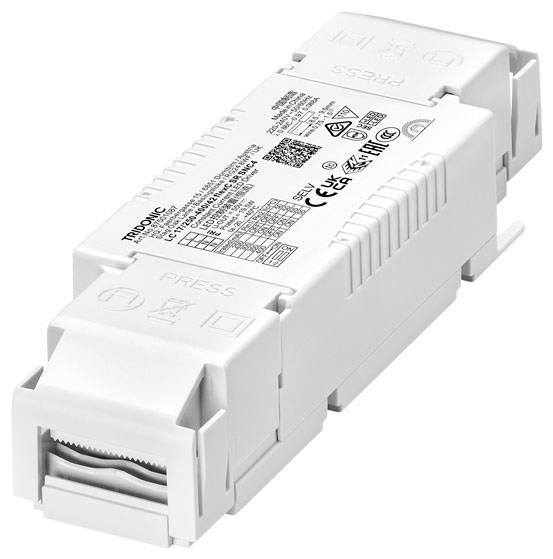

Tridonic LC 17W 250-400mA flexC SRSN C4 LED driver 16.8 W 0.35 A - 400 mA 24 - 42 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Tridonic LC 10/17/25/36/42W flexC SR SNC
- 24 - 42 V
- 0.35 A - 400 mA
Technical specifications
- Number of max. B16 circuit breakers: 116
- Number of max. at C16 circuit breakers: 116
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Dim
(L x W x H) 147 x 43 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
24 V
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- LED driver features
not dimmable
IP20
- Connection
Jack connector
- Max. power
16.8 W
- No. of outputs
1 x
- Output current (min.)
0.35 A
- Power range
16.8 W (max)
- Width
43 mm
- Height
30 mm
- Length
147 mm
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Efficiency
85.5 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435801 Tridonic LC 17W 250-400mA flexC SRSN C4 LED driver 16.8 W 0.35 A - 400 mA 24 - 42 V not dimmable 1 pc(s)
Description
Output current selectable, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
