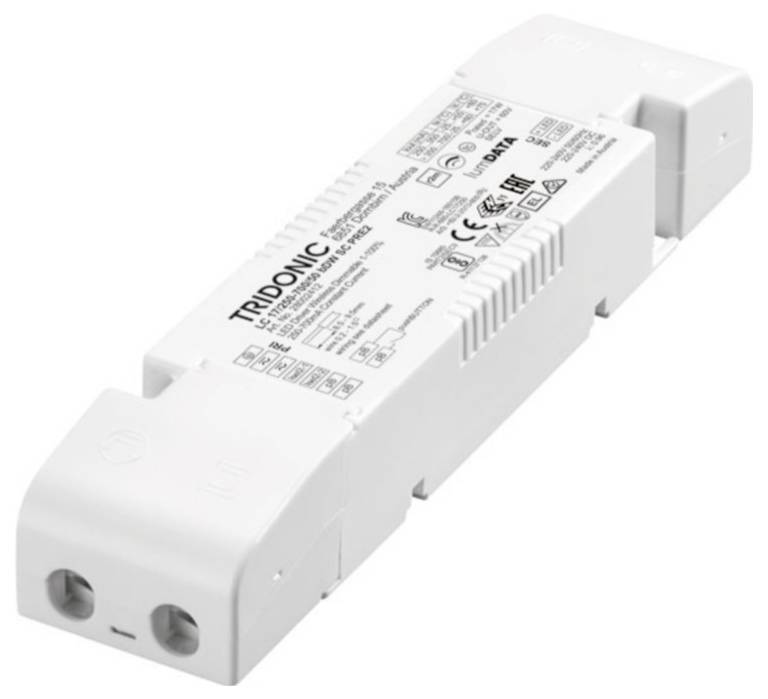

Tridonic LC 17W 250–700mA bDW SC PRE2 LED driver Constant current 17 W 0.7 A 15 - 50 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LC 17W 250–700mA bDW SC PRE2
- Constant current
- 15 - 50 V
- 0.7 A
Technical specifications
- Number of max. B16 circuit breakers: 35
- Number of max. at C16 circuit breakers: 64
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Casambi
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 130 x 43 x 30 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
15 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
17 W
- No. of outputs
1 x
- Output current (min.)
0.7 A
- Power range
17 W (max)
- Width
43 mm
- Height
30 mm
- Length
130 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Efficiency
86 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435704 Tridonic LC 17W 250–700mA bDW SC PRE2 LED driver Constant current 17 W 0.7 A 15 - 50 V adjustable 1 pc(s)
Description
DC-compatible, output current can be selected, emergency light operation device, output current can be programmed
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
