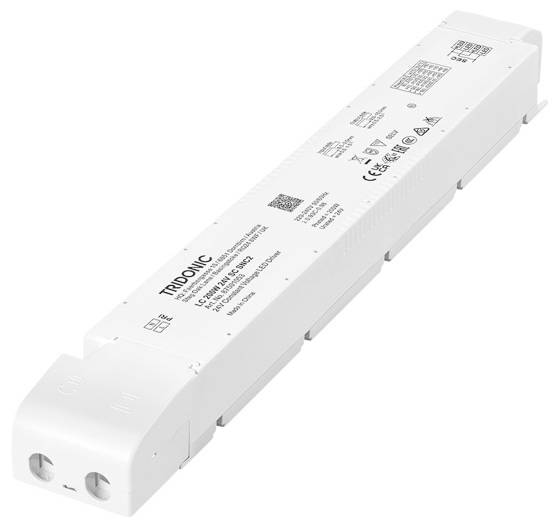

Tridonic LC 200W 24V SC SNC2 LED driver 200 W 8.3 A not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LC 200W 24V SC SNC2
- 8.3 A
Technical specifications
- Number of max. B16 circuit breakers: 10
- Number of max. at C16 circuit breakers: 17
- Operation maintenance:
- Operation maintenance 50,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Operating current
8.3 A
- Dim
(L x W x H) 325 x 43 x 30 mm
- Max. output current
8.3 A
- Output current (max.) - rounded
8.3 A
- LED driver features
not dimmable
IP20
- Connection
Jack connector
- Max. power
200 W
- No. of outputs
1 x
- Output current (min.)
8.3 A
- Power (min.)
35 W
- Power range
35 up to 200 W
- Width
43 mm
- Height
30 mm
- Length
325 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
92.5 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435835 Tridonic LC 200W 24V SC SNC2 LED driver 200 W 8.3 A not dimmable 1 pc(s)
Description
Independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
