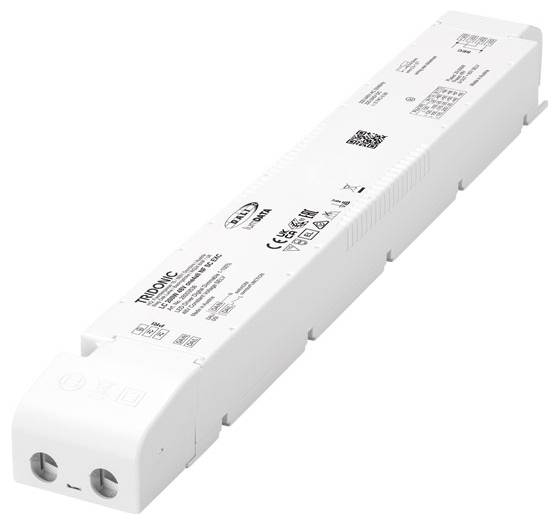

Tridonic LC 200W 48V one4all NF SC EXC SP LED driver Constant current 200 W 4.164 A 48 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TRIDONIC LC 35/60/100/200 NF SC EXC SP L
- Constant current
- 48 V
- 4.164 A
Technical specifications
- Number of max. B16 circuit breakers: 6
- Number of max. at C16 circuit breakers: 12
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 325 x 43 x 30 mm
- Output voltage (max.)
48 V
- Max. output current
4.164 A
- Output current (max.) - rounded
4.16 A
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
200 W
- No. of outputs
1 x
- Output current (min.)
4.164 A
- Power range
200 W (max)
- Width
43 mm
- Height
30 mm
- Length
325 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Efficiency
95 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3435724 Tridonic LC 200W 48V one4all NF SC EXC SP LED driver Constant current 200 W 4.164 A 48 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435724 Tridonic LC 200W 48V one4all NF SC EXC SP LED driver Constant current 200 W 4.164 A 48 V adjustable 1 pc(s)
Description
Independent operating device, emergency lighting device, NFC function, DC compatible, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
