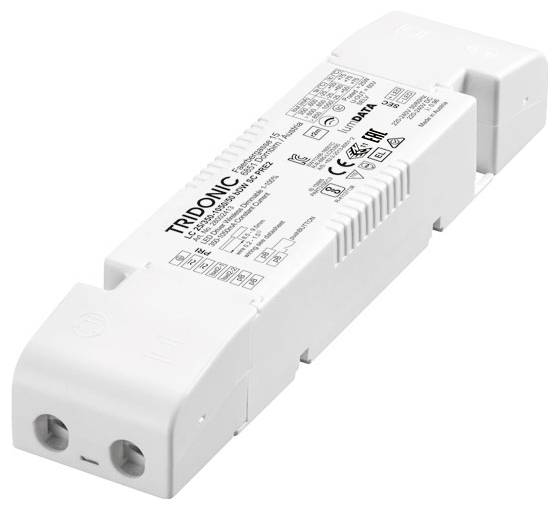

Tridonic LC 25W 350–1050mA bDW SC PRE2 LED driver Constant current 25 W 1.05 A 20 - 50 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic LC 10/17/25/45W BDW SC PRE2 LED
- Constant current
- 20 - 50 V
- 1.05 A
Technical specifications
- Number of max. B16 circuit breakers: 32
- Number of max. at C16 circuit breakers: 53
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Casambi
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 130 x 43 x 30 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
20 V
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
25 W
- No. of outputs
1 x
- Output current (min.)
1.05 A
- Power range
25 W (max)
- Width
43 mm
- Height
30 mm
- Length
130 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Efficiency
90 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3435705 Tridonic LC 25W 350–1050mA bDW SC PRE2 LED driver Constant current 25 W 1.05 A 20 - 50 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435705 Tridonic LC 25W 350–1050mA bDW SC PRE2 LED driver Constant current 25 W 1.05 A 20 - 50 V adjustable 1 pc(s)
Description
DC-compatible, output current can be selected, emergency light operation device, output current can be programmed
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
