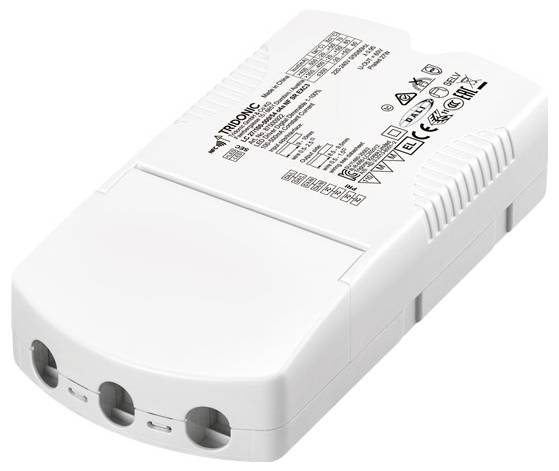

Tridonic LC 27W 100-500mA 54V o4a NF SR EXC LED driver 27 W 0.5 A 27 - 54 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
TRIDONIC LC 20/27/45W O4A NF SR EXC3 LED
- 27 - 54 V
- 0.5 A
Technical specifications
- Number of max. B16 circuit breakers: 89
- Number of max. at C16 circuit breakers: 89
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Dim
(L x W x H) 160 x 82 x 29.2 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
27 V
- Max. output current
0.5 A
- Output current (max.) - rounded
500 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
27 W
- No. of outputs
1 x
- Output current (min.)
0.5 A
- Power range
27 W (max)
- Width
82 mm
- Height
29.2 mm
- Length
160 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
86 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435784 Tridonic LC 27W 100-500mA 54V o4a NF SR EXC LED driver 27 W 0.5 A 27 - 54 V adjustable 1 pc(s)
Description
DC-compatible, NFC function, emergency lighting equipment, selectable output current, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
