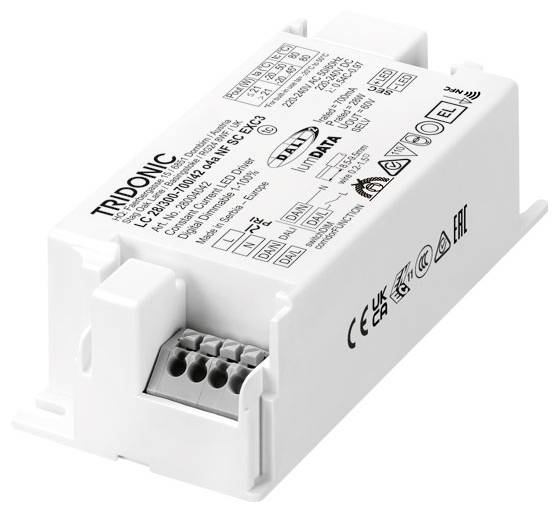

Tridonic LC 28W 300–700mA o4a NFC SC EXC LED driver 28 W 0.7 A 7.5 - 42 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LC 28W 300–700mA o4a NFC SC EXC
- 7.5 - 42 V
- 0.7 A
Technical specifications
- Number of max. B16 circuit breakers: 75
- Number of max. at C16 circuit breakers: 75
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Dim
(L x W x H) 97 x 43 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
7.5 V
IP20
- Connection
Jack connector
- Max. power
28 W
- No. of outputs
1 x
- Output current (min.)
0.7 A
- Power range
28 W (max)
- Width
43 mm
- Height
30 mm
- Length
97 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
86 %
Documents & Downloads
Datasheet
Datasheet 3435726 Tridonic LC 28W 300–700mA o4a NFC SC EXC LED driver 28 W 0.7 A 7.5 - 42 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435726 Tridonic LC 28W 300–700mA o4a NFC SC EXC LED driver 28 W 0.7 A 7.5 - 42 V 1 pc(s)
Description
Emergency light operating device, NFC function, DC compatible, output current selectable, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
