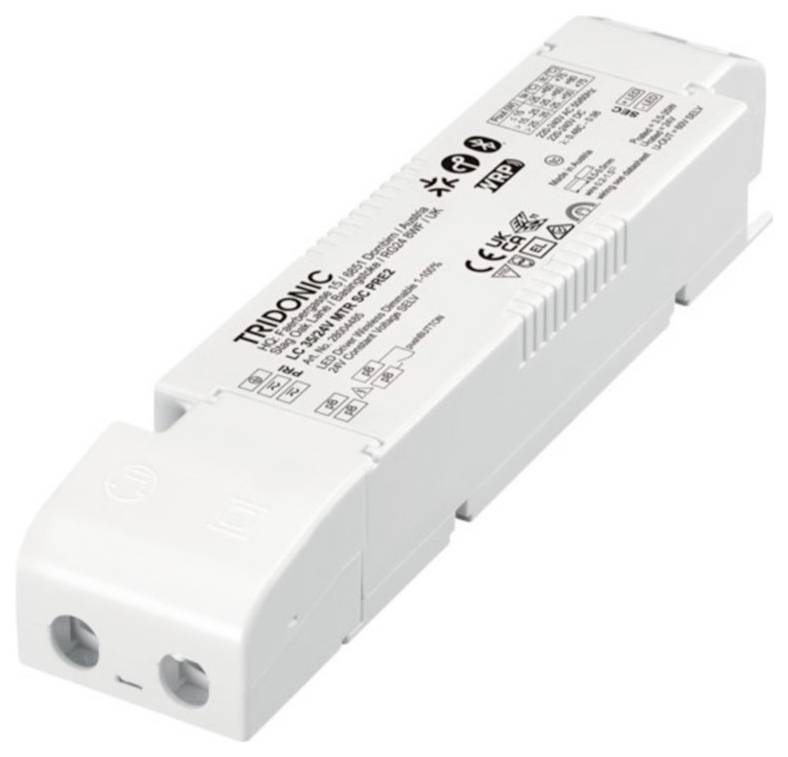

Tridonic LC 35W 24V MTR SC PRE2 LED driver 35 W 1.453 A 24 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
TRIDONIC LC 35/60/100/150W MTR SC PRE2 S
- 24 V
- 1.453 A
Technical specifications
- Number of max. B16 circuit breakers: 28
- Number of max. at C16 circuit breakers: 47
- Operation maintenance:
- Operation maintenance 50,000 h
- Interface:
- Interface: Mat
- Product type
LED driver
- Dim
(L x W x H) 195 x 43 x 30.2 mm
- Output voltage (max.)
24 V
- Max. output current
1.453 A
- Output current (max.) - rounded
1.45 A
IP20
- Connection
Jack connector
- Max. power
35 W
- No. of outputs
1 x
- Output current (min.)
1.453 A
- Power range
35 W (max)
- Width
43 mm
- Height
30.2 mm
- Length
195 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Efficiency
89 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435731 Tridonic LC 35W 24V MTR SC PRE2 LED driver 35 W 1.453 A 24 V 1 pc(s)
Description
Independent operating device, DC compatible, emergency lighting device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
