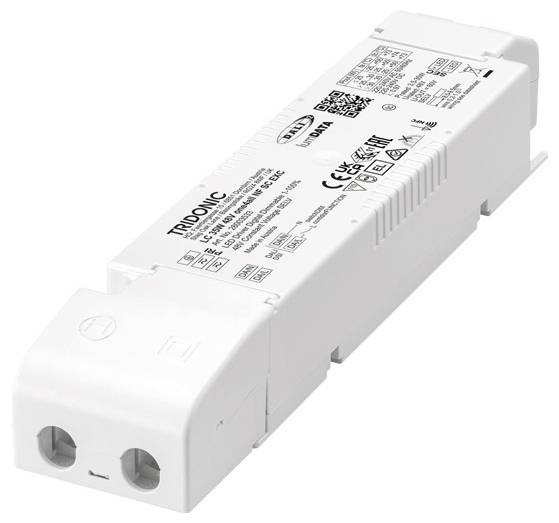

Tridonic LC 35W 48V one4all NF SC EXC SP LED driver 35 W 0.73 A 48 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LC 35W 48V one4all NF SC EXC SP
- 48 V
- 0.73 A
Technical specifications
- Number of max. B16 circuit breakers: 28
- Number of max. at C16 circuit breakers: 56
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Dim
(L x W x H) 193 x 43 x 30 mm
- Output voltage (max.)
48 V
- Max. output current
0.73 A
- Output current (max.) - rounded
730 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
35 W
- No. of outputs
1 x
- Output current (min.)
0.73 A
- Power range
35 W (max)
- Width
43 mm
- Height
30 mm
- Length
193 mm
- Max. temperature
+55 °C
- Min. temperature
-25 °C
- Efficiency
89 %
Documents & Downloads
Datasheet
Datasheet 3435721 Tridonic LC 35W 48V one4all NF SC EXC SP LED driver 35 W 0.73 A 48 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435721 Tridonic LC 35W 48V one4all NF SC EXC SP LED driver 35 W 0.73 A 48 V adjustable 1 pc(s)
Description
Independent operating device, emergency lighting device, NFC function, DC compatible, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
