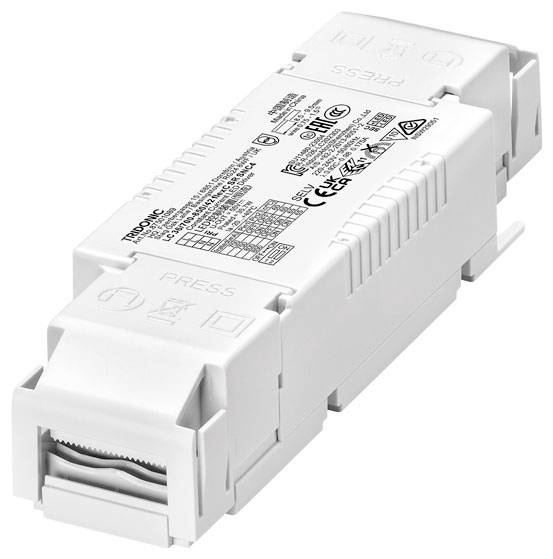

Tridonic LC 36W 700-850mA flexC SRSN C4 LED driver Constant current 35.7 W 0.7 A 24 - 42 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LC 36W 700-850mA flexC SRSN C4
- Constant current
- 24 - 42 V
- 0.7 A
Technical specifications
- Number of max. B16 circuit breakers: 22
- Number of max. at C16 circuit breakers: 36
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 147 x 43 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
24 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- LED driver features
not dimmable
IP20
- Connection
Jack connector
- Max. power
35.7 W
- No. of outputs
1 x
- Output current (min.)
0.7 A
- Power range
35.7 W (max)
- Width
43 mm
- Height
30 mm
- Length
147 mm
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Efficiency
90.5 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435803 Tridonic LC 36W 700-850mA flexC SRSN C4 LED driver Constant current 35.7 W 0.7 A 24 - 42 V not dimmable 1 pc(s)
Description
Output current selectable, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
