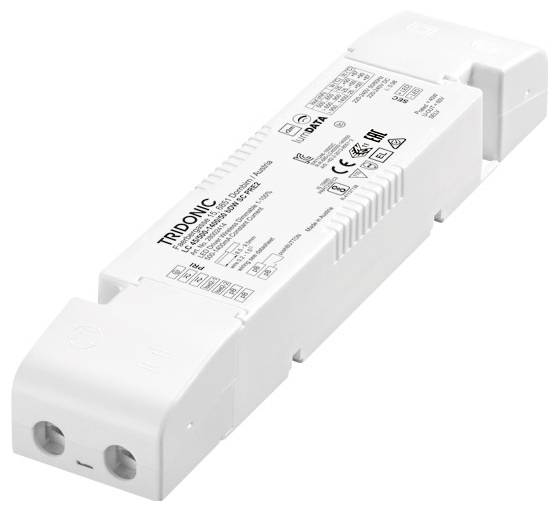

Tridonic LC 45W 500–1400mA bDW SC PRE2 LED driver Constant current 45 W 1.4 A 25 - 50 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic LC 10/17/25/45W BDW SC PRE2 LED
- Constant current
- 25 - 50 V
- 1.4 A
Technical specifications
- Number of max. B16 circuit breakers: 23
- Number of max. at C16 circuit breakers: 38
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Casambi
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 150 x 43 x 30 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
25 V
- Max. output current
1.4 A
- Output current (max.) - rounded
1.4 A
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
45 W
- No. of outputs
1 x
- Output current (min.)
1.4 A
- Power range
45 W (max)
- Width
43 mm
- Height
30 mm
- Length
150 mm
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Efficiency
91 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3435706 Tridonic LC 45W 500–1400mA bDW SC PRE2 LED driver Constant current 45 W 1.4 A 25 - 50 V adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435706 Tridonic LC 45W 500–1400mA bDW SC PRE2 LED driver Constant current 45 W 1.4 A 25 - 50 V adjustable 1 pc(s)
Description
DC-compatible, output current can be selected, emergency light operation device, output current can be programmed
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
