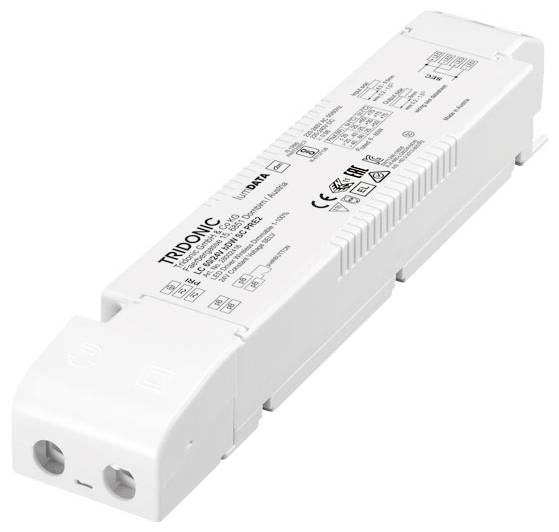

Tridonic LC 60W 24V bDW SC PRE2 LED driver 60 W 2.5 A 24 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic LC 35/60/100/150W BDW SC pre2 S.
- 24 V
- 2.5 A
Technical specifications
- Number of max. B16 circuit breakers: 14
- Number of max. at C16 circuit breakers: 23
- Operation maintenance:
- Operation maintenance 50,000 h
- Interface:
- Interface: Casambi
- Product type
LED driver
- Dim
(L x W x H) 225 x 43 x 30.2 mm
- Output voltage (max.)
24 V
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
IP20
- Connection
Jack connector
- Max. power
60 W
- No. of outputs
1 x
- Output current (min.)
2.5 A
- Power range
60 W (max)
- Width
43 mm
- Height
30.2 mm
- Length
225 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Efficiency
93 %
Documents & Downloads
Datasheet
Datasheet 3435709 Tridonic LC 60W 24V bDW SC PRE2 LED driver 60 W 2.5 A 24 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435709 Tridonic LC 60W 24V bDW SC PRE2 LED driver 60 W 2.5 A 24 V 1 pc(s)
Description
Independent operating device, DC compatible
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
