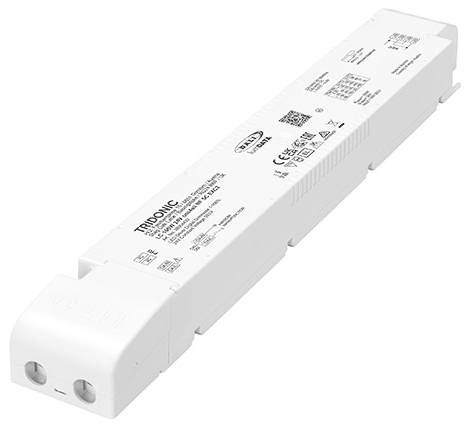

Tridonic LED control gear 100 W 4.170 A 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic LC 100W 24V on4all NF SC EXC2 SP AC/DC-LED-power supply CV 100W 24V 4.170A IP20 Dali-2 push-DIMM
- 4.170 A
Technical specifications
- Housing: Enclosed plastic
- Product type
LED control gear
- Dim
(L x W x H) 295 x 43 x 30 mm
- Max. output current
4.170 A
- Output current (max.) - rounded
4.17 A
- Operating voltage
24 V
IP20
- Max. power
100 W
- Weight
224 g
- Power range
100 W (max)
- Width
43 mm
- Height
30 mm
- Length
295 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3557779 Tridonic LED control gear 100 W 4.170 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3557779 Tridonic LED control gear 100 W 4.170 A 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
