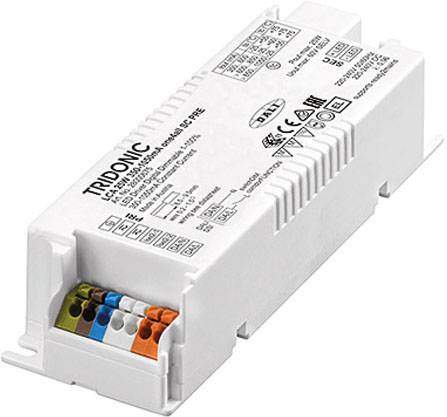

Tridonic LED driver Constant voltage, Constant current 25 W 350 - 1050 mA 20 - 50 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic LED driver 350-1050mA one4all LCA 25W #28000675
- Constant voltage, Constant current
- 20 - 50 V
- 350 - 1050 mA
Technical specifications
- Suitable for DC voltage (primary side): Yes
- Housing: Plastic housing
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 130 x 43 x 30 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
20 V
- Test mark
DALI-2. EN 50172
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Protection class
II
- LED driver features
dimmable
IP20
- Max. power
25 W
- Type
dynamic
- Output current (min.)
350 mA
- Power (min.)
17.5 W
- Power range
17.5 up to 25 W
- Width
43 mm
- Height
30 mm
- Length
130 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2338864 Tridonic LED driver Constant voltage, Constant current 25 W 350 - 1050 mA 20 - 50 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2338864 Tridonic LED driver Constant voltage, Constant current 25 W 350 - 1050 mA 20 - 50 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
