Tridonic LED driver Constant voltage, Constant current 60 W 900 - 1750 mA 20 - 54 V dimmable, adjustable, Surge protecti
EAN:
Part number:
Item no:
Highlights & Details
Tridonic LED driver 900-1750mA one4all LCA 60W #28000677
- Constant voltage, Constant current
- 20 - 54 V
- 900 - 1750 mA
Technical specifications
- Suitable for DC voltage (primary side): Yes
- Housing: Plastic housing
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim

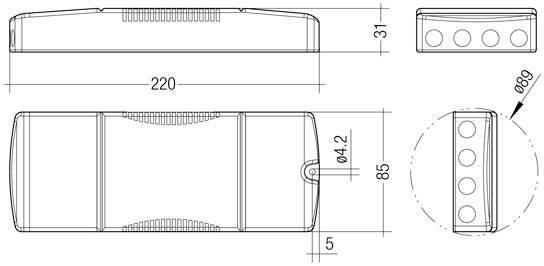

(L x W x H) 220 x 85 x 31 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
20 V
- Test mark
EN 50172
- Max. output current
1750 mA
- Output current (max.) - rounded
1.75 A
- Protection class
II
- LED driver features
dimmable
adjustable
Surge protection
DALI
IP20
- Connection
Clamp
- Max. power
60 W
- Type
dynamic
- Output current (min.)
900 mA
- Power (min.)
48.6 W
- Power range
48.6 up to 60 W
- Width
85 mm
- Height
31 mm
- Length
220 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2338789 Tridonic LED driver Constant voltage, Constant current 60 W 900 - 1750 mA 20 - 54 V dimmable, adjustable, Surge protecti
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
