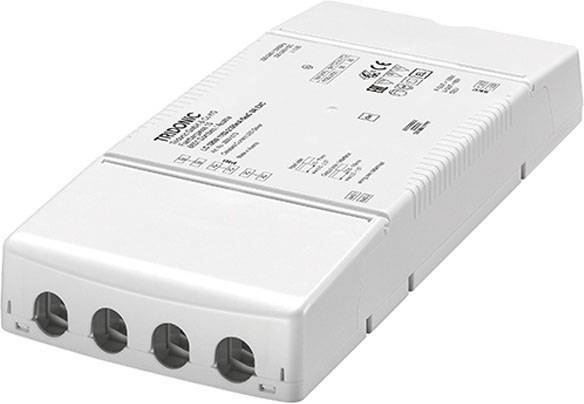

Tridonic LED Treiber LED driver 100 W 1100 - 2100 mA 20 - 54 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Tridonic LED driver 1100-2100mA one4all LCA 100W #28001573
- 20 - 54 V
- 1100 - 2100 mA
Technical specifications
- Suitable for DC voltage (primary side): Yes
- Housing: Plastic housing
- Product type
LED driver
- Dim
(L x W x H) 235 x 100 x 31 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
20 V
- Max. output current
2100 mA
- Output current (max.) - rounded
2.1 A
- Protection class
II
IP20
- Max. power
100 W
- Type
dynamic
- Output current (min.)
1100 mA
- Power (min.)
59.4 W
- Power range
59.4 up to 100 W
- Width
100 mm
- Height
31 mm
- Length
235 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2338796 Tridonic LED Treiber LED driver 100 W 1100 - 2100 mA 20 - 54 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
