Tridonic LED Treiber LED driver Constant current 60 W 900 - 1750 mA 20 - 54 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

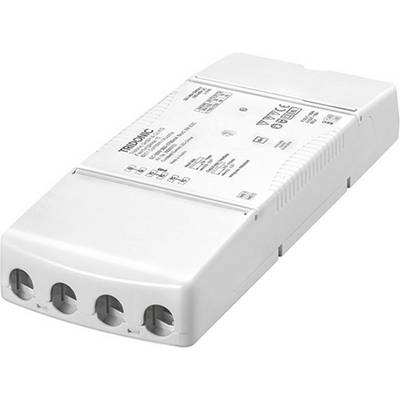

Tridonic LED driver 900-1750mA one4all LCA 60W #28000702
- Constant current
- 20 - 54 V
- 900 - 1750 mA
Technical specifications
- Suitable for DC voltage (primary side): Yes
- Housing: Plastic housing
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 220 x 85 x 31 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
20 V
- Max. output current
1750 mA
- Output current (max.) - rounded
1.75 A
- Protection class
II
IP20
- Max. power
60 W
- Type
dynamic
- Output current (min.)
900 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power (min.)
48.6 W
- Power range
48.6 up to 60 W
- Width
85 mm
- Height
31 mm
- Length
220 mm
I
85
Static
31 mm
90.48 mm
220 m
IP20
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2338798 Tridonic LED Treiber LED driver Constant current 60 W 900 - 1750 mA 20 - 54 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
