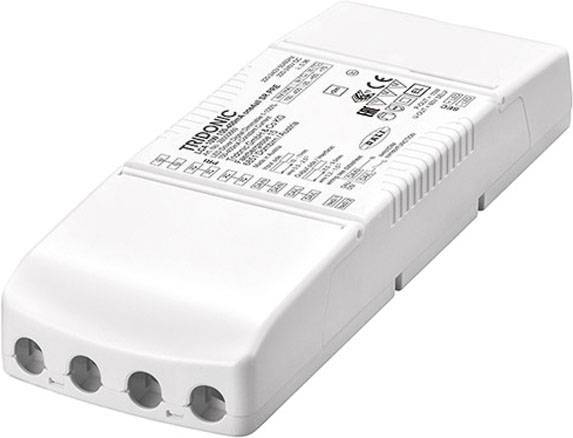

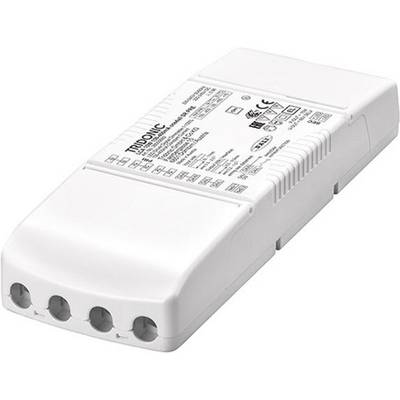

Tridonic LED Treiber LED driver Constant voltage, Constant current 10 W 150 - 400 mA 15 - 40 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED Treiber
- Constant voltage, Constant current
- 15 - 40 V
- 150 - 400 mA
Technical specifications
- Suitable for DC voltage (primary side): Yes
- Housing: Plastic housing
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 200 x 70 x 31 mm
- Output voltage (max.)
40 V
- Output voltage (min.)
15 V
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- Protection class
II
IP20
- Max. power
10 W
- Type
dynamic
- Output current (min.)
150 mA
- Power (min.)
6 W
- Power range
6 up to 10 W
- Width
70 mm
- Height
31 mm
- Length
200 mm
II
70
Dynamic
31 mm
76.56 mm
200 m
IP20
TRUE
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2338807 Tridonic LED Treiber LED driver Constant voltage, Constant current 10 W 150 - 400 mA 15 - 40 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
