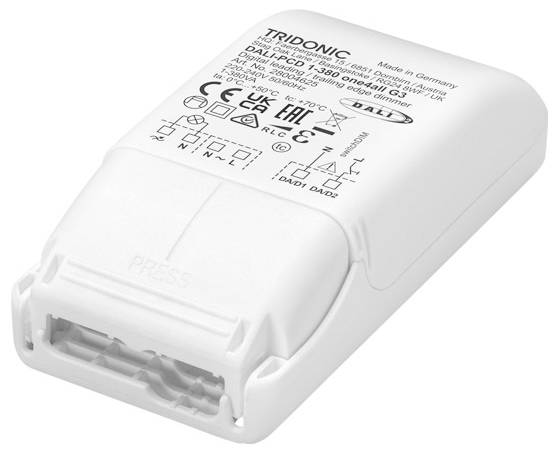

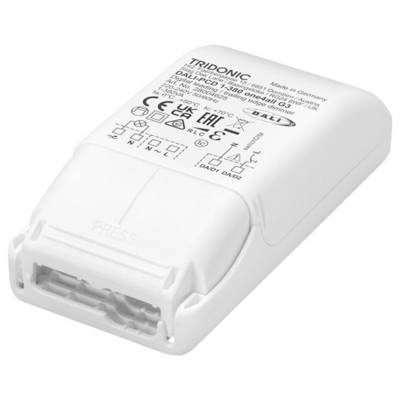

Tridonic Tridonic DALI-PCD 1-380 one4all G3 Dimmer 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Dimmer
- Series
Tridonic
IP20
- Frequency
2.4 GHz
- Width
51 mm
- Height
29.5 mm
- Dim
(L x W x H) 101.5 x 51 x 29.5 mm
- Length
101.5 mm
- Connection
Jack connector
- Output voltage (max.)
240 V
- Output voltage (min.)
220 V
- Max. power
380 W
- No. of outputs
1 x
- Max. temperature
+50 °C
- Min. temperature
0 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3435735 Tridonic Tridonic DALI-PCD 1-380 one4all G3 Dimmer 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435735 Tridonic Tridonic DALI-PCD 1-380 one4all G3 Dimmer 1 pc(s)
Description
Digital phase forward and cut-off dimmer
Total connected load 1 – 380 VA
One4all input: DALI, DSI, switchDIM and corridorFUNCTION input
Switches at zero crossing
1 dimmed phase (output)
With automatic load detection
mounting case
Suitable for operating LED retro-fitting lamps
This text is machine translated.
Total connected load 1 – 380 VA
One4all input: DALI, DSI, switchDIM and corridorFUNCTION input
Switches at zero crossing
1 dimmed phase (output)
With automatic load detection
mounting case
Suitable for operating LED retro-fitting lamps
This text is machine translated.
Scope of delivery
- individual items
