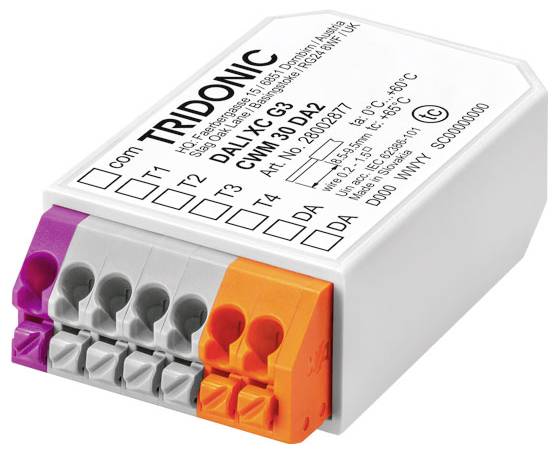

Tridonic Tridonic DALI XC G3 CWM 30 DA2 Control unit 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tridonic DALI components
- DALI-2 input controller
- Compatible with DALI-2 certified application controllers
- Only suitable for DALI 2 certified or compatible light control systems, not compatible with the Tridonic ComfortDIM system
- 4 independent inputs for connecting potential-free contacts, standard push switches
- Multiple DALI XC possible on the DALI 2 line
- Power supply via DALI-2 line
- Connecting wires in the colors of the terminals with 25 cm length are included
Technical specifications
- Product type
Control unit
- Series
Tridonic
- Frequency
2.4 GHz
- Factory colour
Light grey
- Width
47.7 mm
- Height
14.6 mm
- Depth
28.2 mm
- Dim
(W x H x D) 47.7 x 14.6 x 28.2 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3435713 Tridonic Tridonic DALI XC G3 CWM 30 DA2 Control unit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435713 Tridonic Tridonic DALI XC G3 CWM 30 DA2 Control unit 1 pc(s)
Information
Information 3435713 Tridonic Tridonic DALI XC G3 CWM 30 DA2 Control unit 1 pc(s)
Description
BasicDIM Wireless User Interface is a wireless control unit,
Which allows an enormous flexibility in the interior design, because pieces of furniture
Can be replaced and even walls can be changed without the
Wiring or placement of switches must be considered.
The switch can be stored where the user needs it,
And it enables direct access to all important Tridonic
Light control functions.
The basicDIM Wireless User Interface with production number #2917 or
Higher is fully compatible with networks that have up to 250 nodes (evolution
Networks). Devices with a lower production number
Are only compatible with networks up to a maximum of 127 devices (Classic
Networks). The production number can be found on the battery holder.
If the basicDIM wireless user interface with different basicDIM
Wireless devices in an evolution network must be used
Check their compatibility first.
If a device is not compatible with Evolution networks, it can only
Used in classic networks.
Multiple devices automatically form a mesh network that is shared by each
Can be controlled at any point.
These networks communicate wirelessly directly with the smartphone or
Tablet PCs This means that there is no external gateway or wireless LAN network
Required:
This text is machine translated.
Which allows an enormous flexibility in the interior design, because pieces of furniture
Can be replaced and even walls can be changed without the
Wiring or placement of switches must be considered.
The switch can be stored where the user needs it,
And it enables direct access to all important Tridonic
Light control functions.
The basicDIM Wireless User Interface with production number #2917 or
Higher is fully compatible with networks that have up to 250 nodes (evolution
Networks). Devices with a lower production number
Are only compatible with networks up to a maximum of 127 devices (Classic
Networks). The production number can be found on the battery holder.
If the basicDIM wireless user interface with different basicDIM
Wireless devices in an evolution network must be used
Check their compatibility first.
If a device is not compatible with Evolution networks, it can only
Used in classic networks.
Multiple devices automatically form a mesh network that is shared by each
Can be controlled at any point.
These networks communicate wirelessly directly with the smartphone or
Tablet PCs This means that there is no external gateway or wireless LAN network
Required:
This text is machine translated.
Scope of delivery
- individual items
