Trilux 6721540 6721540 LED surface-mount light LED (monochrome) 25 W Black
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- LED bulb, replaceable
- With bulb: Yes
- Mounting type: Attachment
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Powder-coated
- Black enclosure
- Cover material: Other
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM5
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 100000 h
- Protection class (IP) IP23
- Protection class (NEMA): Other
- Adjustable lens: No.
- Suitable for pin dimension: 76 mm
- Impact strength: IK04
- Protection class: II
- Lamp with limited surface temperature "D-sign": No.
- Ambient temperature according IEC62722-2-1: 25°C.
- Remote control: Without
- With radio control: No.
- Constant luminous flux regulation: Yes
- With program-controlled light control: No.
- With connection cable: Yes
- Cable length 6 m
- Max. System power 25 W
- Rated light current according to IEC 62722-2-1: 2600 lm
- Light output 104 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 70-79
- Power factor 0.95
- Height/depth 590 mm
- Diameter: 740 mm
- Type of wiring: Finish
- Number of poles: 2
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Connection type: Other
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
24.00 W
25 W
4000 K
- Colour
White
2600 lm
- Total luminous flux
2600 lm
- Light features
Incl. ballast
- Protection class
II
IP23
- Factory colour
Black
- Material
Aluminium
- Weight
11.5 kg
- Dim
(Ø x H) 740 mm x 590.00 mm
n.rel.
- Recess diameter
76 mm
- Colour rendering index
70-79
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Height
590.00 mm
- Depth
590 mm
- (Ø)
740 mm
- Rated luminous flux
2600 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3133940 Trilux 6721540 6721540 LED surface-mount light LED (monochrome) 25 W Black
Description

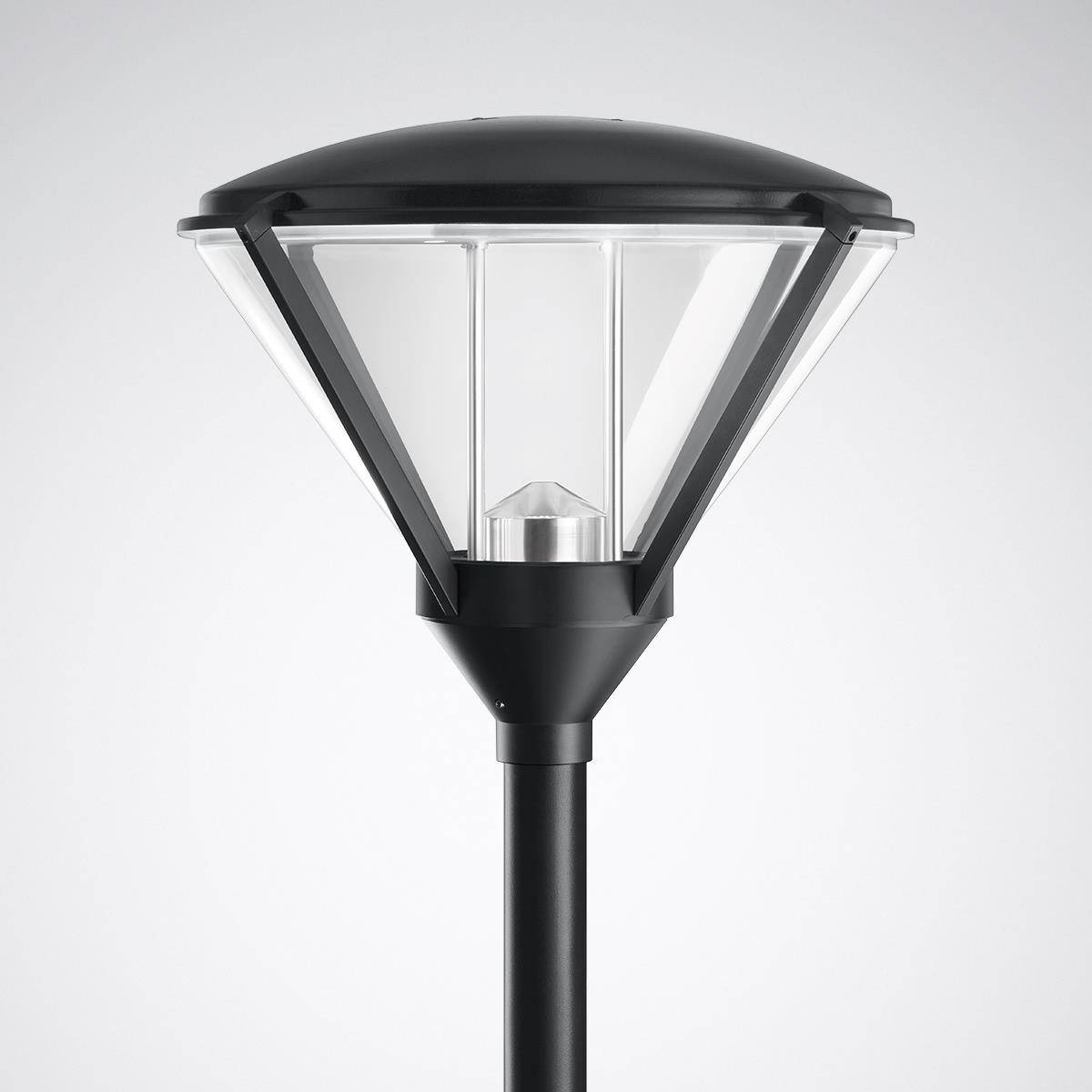

Decorative LED conical light for mast attachment mounting. With an intelligent label for quickly accessing light information using the QR code. For mast head Ø 76 mm. With the help of reducing pieces to be ordered separately also for the mounting on masts with shoot Ø 60 mm suitable. Suitable mast on request. Optical system running in Multi Lens Technology (MLT). Light optics comprising of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide radiating light intensity distribution. The subsequent installation of a rear / side shielding is possible as accessories to be ordered separately. LED system consisting of 3 LED modules. Rated light current 2600 lm, rated power 24.00 W, maximum light yield 108 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color site tolerance (initial Macadam) = 5 SDCM. Other LED light colors available on request. Average measuring lifetime LCLO(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Versions with 3-stage switch for setting different light currents on request. Light fixtures made of die-cast aluminum, light roof made of corrosion-resistant aluminum, powder-coated with high weather resistance. Colour black (RAL 9005). Lakeside weather suitable coating on request. White powder-coated inner lamp roof. End cylinder made of high impact resistance PMMA, clear. Protection class (EN 61140): II, protection class (DIN EN 60529): IP23, protection class: Lamp room IP65, shock resistance class according to IEC 62262: IK04. Mast available on request. Wind attack area FW 0.360 m2. Weighs 11.5 kg With electronic operating device, switchable. Parameterisable operating device with constant light current maintenance (CLO). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). With connected, 6000 mm long supply line. With insulated base point for the earth conductor. Electric block with all the electrical components can be replaced without the need for a tool. Shock resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
