Buy Trilux 6721740 6721740 LED surface-mount light LED (monochrome) 37 W Silver

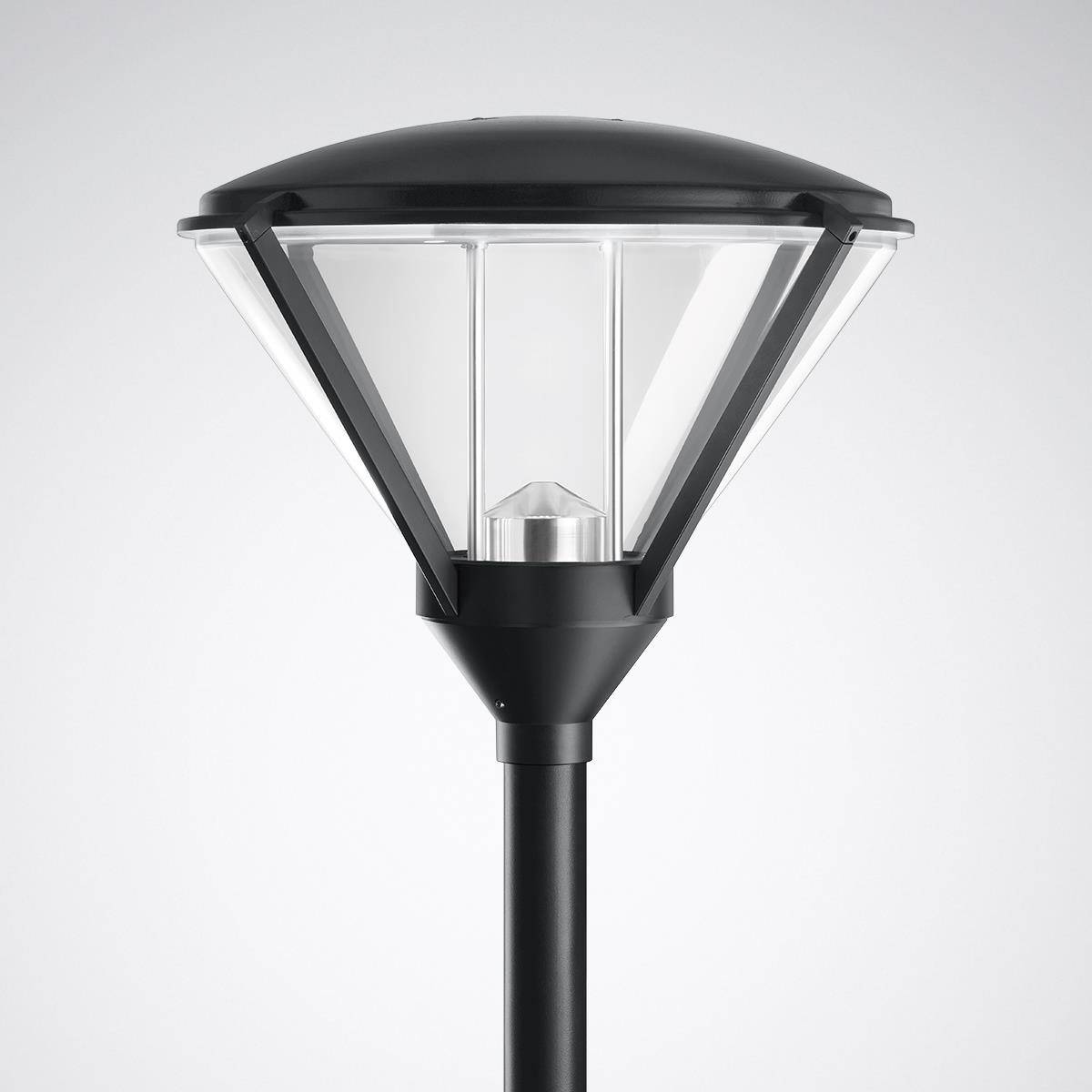

A modern street lamp design with transparent panels, black frames and a round, flat roof.<br><br>Note: The translation is essentially the same as the original, with no significant changes needed to adapt to British English in this case.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
LED bulb, replaceable
With bulb: Yes
Mounting type: Attachment
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Aluminium
Surface protection: Powder-coated
Housing color: Silver
Cover material: Transparent plastic
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light: Focus lens
Color consistency (McAdam ellipse): SDCM5
Energy efficiency of the permanently installed light bulb: Other
Rated life L70/B50 at 25 °C: 100000 h
Protection class (IP) IP23
Protection class (NEMA): Other
Adjustable lens: No.
Suitable for pin dimension: 76 mm
Impact strength: IK04
Protection class: II
Lamp with limited surface temperature "D-sign": No.
Ambient temperature according IEC62722-2-1: 25°C.
Remote control: Without
With radio control: No.
Constant luminous flux regulation: Yes
With program-controlled light control: No.
With connection cable: Yes
Cable length 6 m
Max. System power 37 W
Rated light current according to IEC 62722-2-1: 3800 lm
Light output 103 lm/W
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 70-79
Power factor 0.95
Height/depth 590 mm
Diameter: 740 mm
Type of wiring: Finish
Number of poles: 2
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Connection type: Other
Compatible with Amazon Alexa: No.
IFTTT support available: No.

Product type: LED surface-mount light

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 35.00 W

: 37 W

: 4000 K

Colour: White

: 3800 lm

Total luminous flux: 3800 lm

Light features: Incl. ballast

Protection class: II

: IP23

Factory colour: Silver

Material: Aluminium

Weight: 11.5 kg

Dim: (Ø x H) 740 mm x 590.00 mm

: n.rel.

Recess diameter: 76 mm

Colour rendering index: 70-79

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Height: 590.00 mm

Depth: 590 mm

(Ø): 740 mm

Rated luminous flux: 3800 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3133951 Trilux 6721740 6721740 LED surface-mount light LED (monochrome) 37 W Silver

Description

Decorative LED conical light for mast attachment mounting. With an intelligent label for quickly accessing light information using the QR code. For mast head Ø 76 mm. With the help of reducing pieces to be ordered separately also for the mounting on masts with shoot Ø 60 mm suitable. Suitable mast on request. Optical system running in Multi Lens Technology (MLT). Light optics comprising of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide radiating light intensity distribution. The subsequent installation of a rear / side shielding is possible as accessories to be ordered separately. LED system consisting of 4 LED modules. Rated light current 3800 lm, rated power 35.00 W, maximum light yield 109 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color site tolerance (initial Macadam) = 5 SDCM. Other LED light colors available on request. Average measuring lifetime LCLO(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Versions with 3-stage switch for setting different light currents on request. Light fixtures made of die-cast aluminum, light roof made of corrosion-resistant aluminum, powder-coated with high weather resistance. Colour black (RAL 9005). Lakeside weather suitable coating on request. White powder-coated inner lamp roof. End cylinder made of high impact resistance PMMA, clear. Protection class (EN 61140): II, protection class (DIN EN 60529): IP23, protection class: Lamp room IP65, shock resistance class according to IEC 62262: IK04. Mast available on request. Wind attack area FW 0.360 m2. Weighs 11.5 kg With electronic operating device, switchable. Parameterisable operating device with constant light current maintenance (CLO). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). With connected, 6000 mm long supply line. With insulated base point for the earth conductor. Electric block with all the electrical components can be replaced without the need for a tool. Shock resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.

This text is machine translated.
