Trilux 6725040 6725040 LED surface-mount light LED (monochrome) 14 W Black
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- LED bulb, replaceable
- With bulb: Yes
- Mounting type: Attachment
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Powder-coated
- Black enclosure
- Cover material: Other
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: Yes
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM5
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 100000 h
- Protection class (IP) IP23
- Protection class (NEMA): Other
- Adjustable lens: No.
- Suitable for pin dimension: 76 mm
- Impact strength: IK04
- Protection class: II
- Lamp with limited surface temperature "D-sign": No.
- Ambient temperature according IEC62722-2-1: 25°C.
- Remote control: Without
- With radio control: No.
- Constant luminous flux regulation: Yes
- With program-controlled light control: No.
- With connection cable: Yes
- Cable length 6 m
- Max. System power 14 W
- Rated light current according to IEC 62722-2-1: 1500 lm
- Light output 107 lm/W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 70-79
- Power factor 0.9
- Height/depth 586 mm
- Diameter 654 mm
- Type of wiring: Finish
- Number of poles: 3
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Connection type: Other
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
14 W
3000 K
- Colour
White
1500 lm
- Total luminous flux
1500 lm
- Light features
Selectable luminous flux
- Protection class
II
IP23
- Factory colour
Black
- Material
Aluminium
- Weight
11.3 kg
- Dim
(Ø x H) 654 mm x 586.00 mm
n.rel.
- Recess diameter
76 mm
- Colour rendering index
70-79
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
586.00 mm
- Depth
586 mm
- (Ø)
654 mm
- Rated luminous flux
1500 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3133794 Trilux 6725040 6725040 LED surface-mount light LED (monochrome) 14 W Black
Description

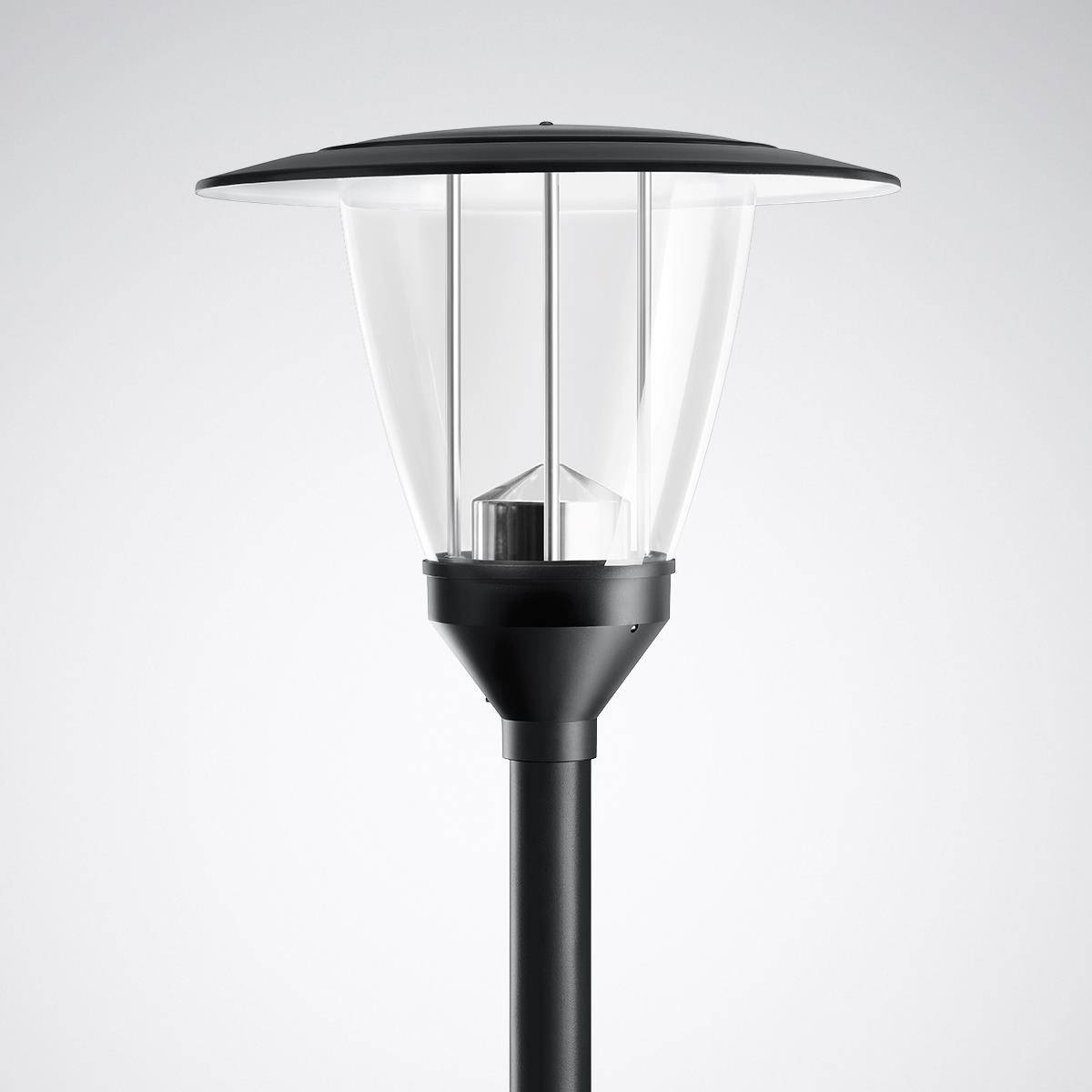

Decorative LED mushroom lamp for mast attachment mounting. With an intelligent label for quickly accessing light information using the QR code. For mast head Ø 76 mm. With the help of reducing pieces to be ordered separately also for the mounting on masts with shoot Ø 60 mm suitable. Suitable mast on request. Optical system running in Multi Lens Technology (MLT). Light optics comprising of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide radiating light intensity distribution. The subsequent installation of a rear / side shielding is possible as accessories to be ordered separately. LED system consisting of 2 LED modules. Rated light current 1500 lm, rated power 13.50 W, maximum light yield 111 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 70. Color site tolerance (initial Macadam) = 5 SDCM. Other LED light colors available on request. Average measuring lifetime LCLO(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Versions with 3-stage switch for setting different light currents on request. Light fixtures made of die-cast aluminum, light roof made of corrosion-resistant aluminum, powder-coated with high weather resistance. Colour of lamp body and lamp roof, outer deep black, similar to RAL 9005. White powder-coated inner lamp roof. Lakeside weather suitable coating on request. End cylinder made of high impact resistance PMMA, clear. Protection class (EN 61140): II, protection class (DIN EN 60529): IP23, protection class: Lamp room IP65, shock resistance class according to IEC 62262: IK04. Mast available on request. Wind attack area FW 0.340 m2. Weight: 11.3 kg With electronic operating device, switchable. Parameterisable operating device with constant light current maintenance (CLO). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). With connected, 6000 mm long supply line. With insulated base point for the earth conductor. Electric block with all the electrical components can be replaced without the need for a tool. Shock resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
