Trilux 6907140 6907140 LED surface-mount light LED (monochrome) 22 W Black
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- LED bulb, replaceable
- With bulb: Yes
- Mounting type: Attachment
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Powder-coated
- Black enclosure
- Cover material: Other
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: Yes
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM5
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 100000 h
- Protection class (IP) IP23
- Protection class (NEMA): Other
- Adjustable lens: No.
- Suitable for pin dimension: 76 mm
- Impact strength: IK10
- Protection class: II
- Lamp with limited surface temperature "D-sign": No.
- Ambient temperature according IEC62722-2-1: 25°C.
- Remote control: Without
- With radio control: No.
- Constant luminous flux regulation: Yes
- With program-controlled light control: No.
- With connection cable: No.
- Max. System power 22 W
- Rated light current according to IEC 62722-2-1: 2900 lm
- Light output 132 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 70-79
- Power factor 0.9
- Height/depth 325 mm
- Diameter 604 mm
- Type of wiring: Finish
- Number of poles: 3
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Connection type: Other
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
22 W
4000 K
- Colour
White
- Total luminous flux
2900 lm
- Light features
Incl. strain relief
- Protection class
II
IP23
- Factory colour
Black
- Material
Aluminium
- Weight
4.8 kg
- Dim
(Ø x H) 604 mm x 325.00 mm
n.rel.
- Recess diameter
76 mm
- Colour rendering index
70-79
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Height
325.00 mm
- Depth
325 mm
- (Ø)
604 mm
- Rated luminous flux
2900 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3133696 Trilux 6907140 6907140 LED surface-mount light LED (monochrome) 22 W Black
Description

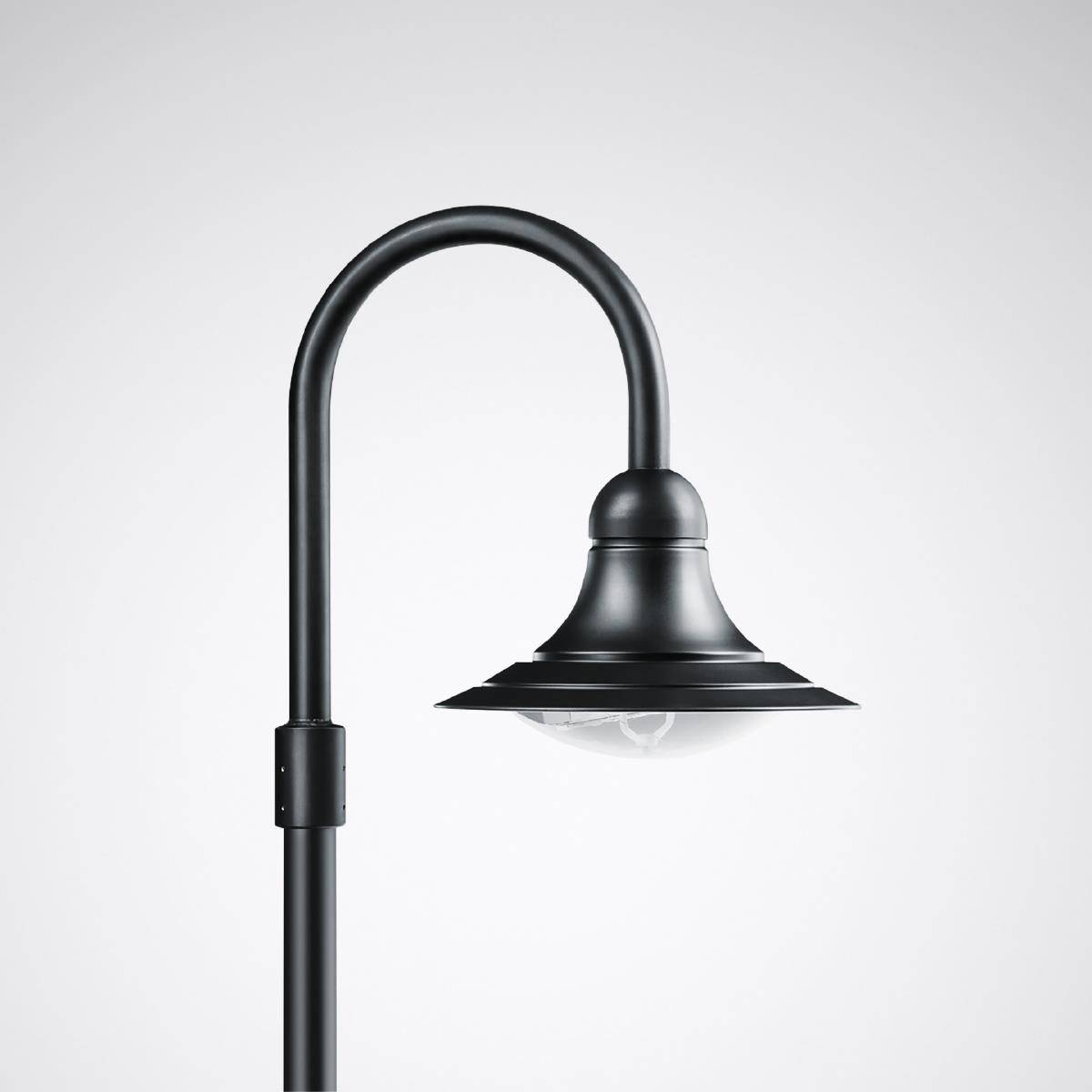

Decorative, compact LED mast attachment lamp in arc form. With an intelligent label for quickly accessing light information using the QR code. With power reduction via the control phase. Turning off a control phase causes the luminous flux to be adjusted to 50%. Mounting on mast supports or wall mounting. Suitable mast on request. Optical system running in Multi Lens Technology (MLT). Light optics comprising of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide radiating light intensity distribution. For lighting of roads according to P-type lighting classes. Other radiation characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear / side shielding is possible as accessories to be ordered separately. LED system consisting of 4 LED modules. Rated light current 2900 lm, rated power 21.00 W, maximum light yield 138 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K. General color rendering index (CRI) Ra > 70. Color site tolerance (initial Macadam) = 5 SDCM. Other LED light colors available on request. Average measuring lifetime LCLO(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Versions with 3-stage switch for setting different light currents on request. Light roofs made of corrosion resistant aluminum. Black color Seaweather suitable coating on request. Closing tub made from high-impact PMMA, clear. Securely fixed with a stainless steel screw. Protection class (EN 61140): II, protection class (DIN EN 60529): IP23, protection class: Lamp room IP65, shock resistance class according to IEC 62262: IK10. Mast available on request. Wind attack area FW 0.090 m2. Weight: 4.8 kg Device carrier can be easily removed through connector. Electrical connection at 3-pin socket part of the plug connection up to 2.5 mm 2. With strain-relief clamp With electronic operating device, switchable. Parameterisable operating device with constant light current maintenance (CLO). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Shock resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
