Trilux 7228500 7650 L-ALB #7228500 LED device mount 2.6 W LED (monochrome) Silver 1 pc(s)

A grey metal element with a small, distinctive yellow and silver detail in the bottom right.

A grey metal element with a small, distinctive yellow and silver detail in the bottom right.

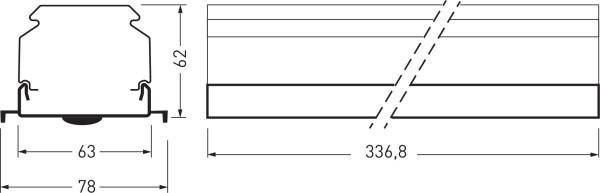

Technical drawing shows the cross-section and side view of a component with dimensions: width 63 mm, height 62 mm, length 336.8 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 2.6 W

: 2.6 W

: 4000 K

Colour: White

: 139 lm

Total luminous flux: 139 lm

Light features: Direct light emission

Cable spacing: 375 mm

Test mark: CE-Kennzeichnung

: IP20

Protection class: I

Factory colour: Silver

Material: Steel

Dim: (L x W x H) 368 x 62 x 50 mm

: n.rel.

Colour rendering index: 70-79

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 62 mm

Height: 50 mm

Length: 368 mm

Light bulb included: Yes

Radiation angle: 80°

UKCA: not relevant
