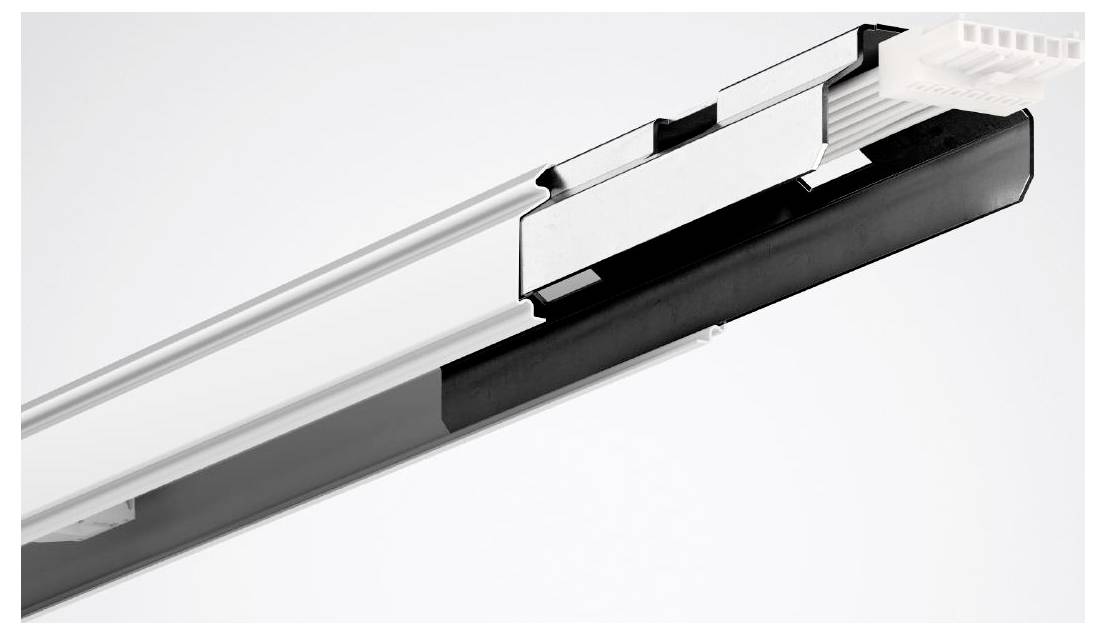

Trilux 7272600 07650L300 7LV 150 01 Support 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 41 mm
- Width 63 mm
- Design: 2-lang
- Material: Steel
- Colour: white
- Protection class (IP) IP20
- Protection class: I
- Length: 2950 mm
- With wiring: Yes
- Suitable for cable channel: No.
- Variable rack distance: No.
- With cable duct: No.
- Electrical connection with connector system: No.
- Integrated electromechanical coupling: Yes
- Number of wiring wires: 7
- Cross-section of wiring wires: 2.5 mm²
- Product type
Support
IP20
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3542355 Trilux 7272600 07650L300 7LV 150 01 Support 1 pc(s)
Description
Support profile for E-Line 7651 Fix light band applications. For simple installation a pre-mounted light band coupling is included in the delivery for connection with another carry profile. Length of support profile 2950 mm With 7-conductor through wiring. Cable cross-section 2.5 mm2 With 2 separating connector upper parts for tool-free, electrical connection of the device carrier in each case at a distance of 1500 mm. With pair of 7-pin socket plugs for the electrical quick connection as well as contact-proof closure of the cable ends. The heat-resistant through-wiring is complete in the factory with all the necessary components. All the connections are fast connection protected against polarity reversal. An upper opening (M20/PG13.5) allows the infeed to take place without accessories. The load profile body is made of hot-dip galvanized steel plate White surface coating.
