Trilux 7763740 Opendo D2-L #7763740 LED tape light 37 W LED (monochrome) White 1 pc(s)

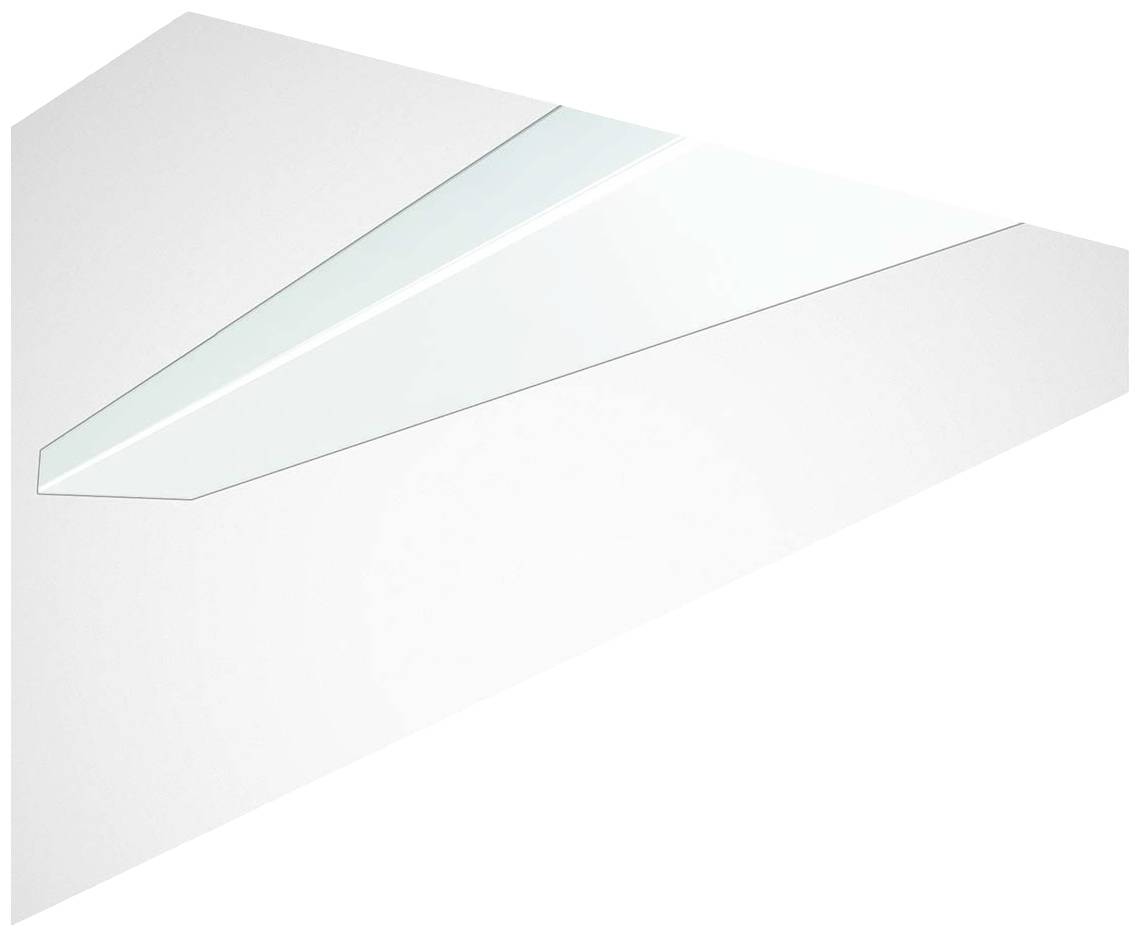

A white paper aeroplane hovers in the air against a neutral, pale background.

A white paper aeroplane hovers in the air against a neutral, pale background.

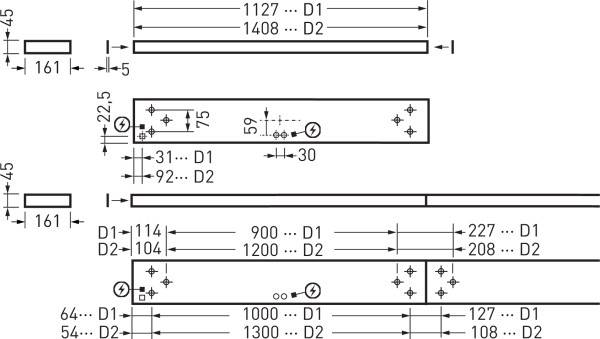

'Technical drawing of a component arrangement with dimensions. Contains multiple line segments, distances and measurements in millimetres.'

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LED tape light

Operating voltage: 220 V
240 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 37 W

: 37 W

: 3000 K

Colour: White

: 4500 lm

Total luminous flux: 4500 lm

Light features: Usable as a pendant light
Ceiling mount option
Suitable for wall mounting

Test mark: ENEC

: IP20

Protection class: I

Factory colour: White

Material: Steel

Dim: (L x W x H) 1408 x 161 x 48 mm

: n.rel.

Type: Rectangular

Colour rendering index: 80-89

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Width: 161 mm

Height: 48 mm

Length: 1408 mm

Light bulb included: Yes

Radiation angle: 80°

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2604899 Trilux 7763740 Opendo D2-L #7763740 LED tape light 37 W LED (monochrome) White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2604899 Trilux 7763740 Opendo D2-L #7763740 LED tape light 37 W LED (monochrome) White 1 pc(s)
