Trilux 7765551 Opendo D2-L #7765551 LED tape light 38 W LED (monochrome) Silver 1 pc(s)

A rectangular, white air filter with a green light on the right-hand side.

A rectangular, white air filter with a green light on the right-hand side.

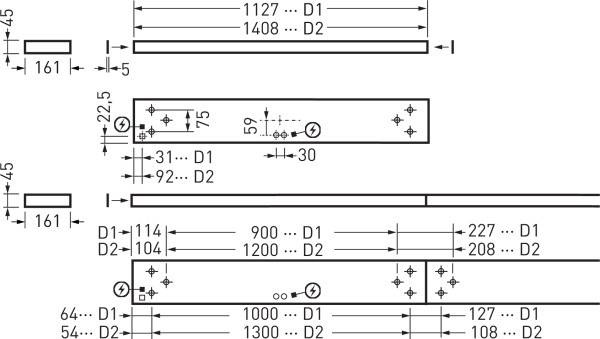

Technical drawing with various rectangles, dimension measurements in mm, and labels 'D1', 'D2'. Objects showing size and positioning.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LED tape light

Operating voltage: 220 V
240 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 38 W

: 38 W

: 4000 K

Colour: White

Total luminous flux: 4700 lm

Light features: Usable as a pendant light
Ceiling mount option
Suitable for wall mounting
Dimmable

Test mark: EN 12464-1

: IP20

Protection class: I

Factory colour: Silver

Material: Steel

Dim: (L x W x H) 1408 x 161 x 48 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature range: 4000 K

Width: 161 mm

Height: 48 mm

Length: 1408 mm

Light bulb included: Yes

Radiation angle: 80°

UKCA: yes
