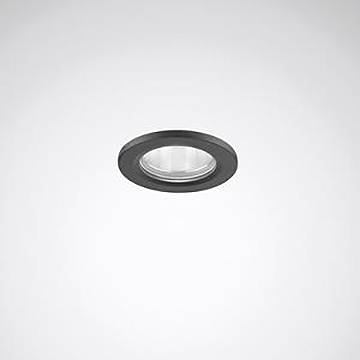

Trilux 7768250 InveriaC110 #7768250 LED recessed light
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Protection class (IP) IP65
- Surface protection: Painted
- Protection class: II
- Impact strength: IK07
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Extremely narrow radiating 5-10°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Height/depth 83 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Black enclosure
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 13 W
- Luminous flux: 1200 lm
- Rated light current according to IEC 62722-2-1: 1200 lm
- Installation height/depth 100 mm
- Installation diameter 95 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Outer diameter: 113 mm
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Other
- Light distributor: Reflector
- Color consistency (McAdam ellipse): SDCM2
- Ambient temperature according IEC62722-2-1: 25°C.
- Integrated emergency power supply: No.
- Light output 92 lm/W
- Power factor 0.95
- Suitable for pedestal-/floor mounting: No.
- Version: Other
- S/N ratio (THD): 10
- Filament testing according to IEC 60695-2-11:960°C - 30 s.
- Photobiological safety according to EN 62471: RG1
- Max. Number of lights circuit breaker B16: 51
- Max. Number of lamps line circuit breakers C16: 86
- Lamp with limited surface temperature ""D-sign"": No.
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Product type
LED recessed light
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549320 Trilux 7768250 InveriaC110 #7768250 LED recessed light
Description
Round LED downlight for covered outdoor areas. Flush-mounted downlight with frame for sawn ceiling openings. Ceiling cut-out Ø 95 mm, installation depth 100 mm. With anodized aluminum reflector. With rotary-symmetrical deep beam distribution of light intensity. Light flux and color temperature are preset. Rated light current 1200 lm, rated power 13 W, maximum light yield 92 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 2 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Light fixtures made of die-cast aluminum Black coating on the surface (similar to RAL 9005). High resistance to UV rays and resistant to corrosion by salt mist. On request, the luminaire body can be constructed in the following colors without additional costs: Black textured (Akzo Nobel 8118669, similar to RAL 9005, V5), white textured (Akzo Nobel 8158870, similar to RAL 9016, V6), gray textured (Akzo Nobel 8129595, similar to RAL 9006, V7). Further color variants according to RAL or DB color code are possible on request at extra cost. Outer dimensions of ceiling ring Ø 113 mm, light height 83 mm. Protection class (EN 61140): II, protection class (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK07. Permissible ambient temperature (ta): -20 °C to 25 °C. Weighs 0.5 kg With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Shock resistance differential mode / common mode: 1 kV / 2 kV. The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
