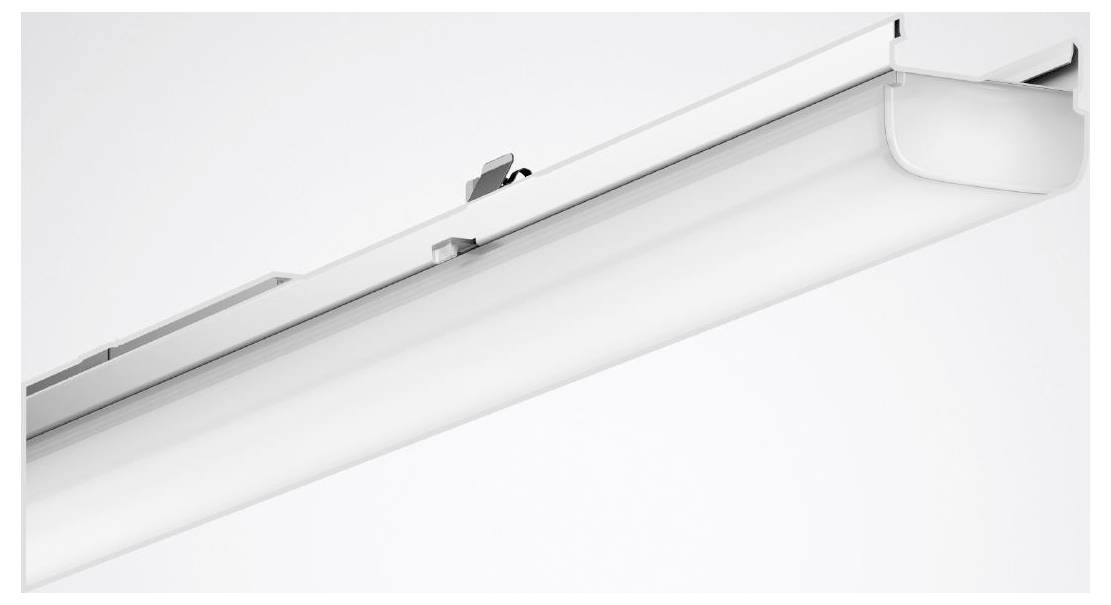

Trilux 7779400 7651 DL 8- #7779400 LED device mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Width 67 mm
- Protection class (IP) IP20
- Protection class: I
- Material of housing: Steel
- Length: 737 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Free-radiation/diffuse
- Operating device: Not required
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 71 mm
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: No.
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 5 W
- Rated light current according to IEC 62722-2-1: 800 lm
- Operation via Bluetooth: No.
- Light distributor: Other
- Color consistency (McAdam ellipse): SDCM3
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: Yes
- Light output 160 lm/W
- Power factor 0.9
- Version: Other
- S/N ratio (THD): 14
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Product type
LED device mount
IP20
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543078 Trilux 7779400 7651 DL 8- #7779400 LED device mount 1 pc(s)
Description
LED device-carrier with emergency light function for E-Line Fix light band system. Nominal operating time of the emergency light function 1 hour. The equipment carriers with emergency lighting modules can be combined with a support profile concept through-pass wiring type 7LV + 7LV. Fulfils DIN 10500. The lamps are suitable for applications in HACCP, IFS and/or BRC Global Standard Food certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765... Suitable with 7-wire through wiring (7LV). Attachment to the supporting profile by tool-free operable stainless steel snap locks. The correct mounting of the device carrier with the support profile is confirmed by a click-in sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after a successful installation and thus ensure theft and dismantling protection. The optical system consists of a translucent, very flat PMMA cover with Hohem transmission degree, mounting height 26 mm. With lambertian light intensity distribution. Recommended installation height 2.5 - 4 m. Lamp current and light color are fixed Rated light current 800 lm, rated power 5 W, maximum light yield 160 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K. General color rendering index (CRI) Ra > 80. Color location tolerance (initial Macadam) = 3 SDCM The light source is interchangeable according to the eco-design requirements (VO (EU) 2019/2020). Device carrier made of steel sheet. White surface coating (similar to RAL 9016). Length of device-holder 737 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Insect-proof lamp compartment thanks to protection class IP 50. Weighs 1.3 kg Self-activating electrical connection through contact pins with phase selection. The phase selection is done without any tools. With electronic operating device, digitally addressable (DALI). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp is Monitoring Ready (MOR) and provides lamp data for monitoring or predictive maintenance. It is therefore compatible with the TRILUX digital services (Energy Monitoring and Light Monitoring). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. Lamp 10 years, spare parts (LED module, operating device, optical system) available 15 years after date of invoice subject to reasonable changes to the progress.
