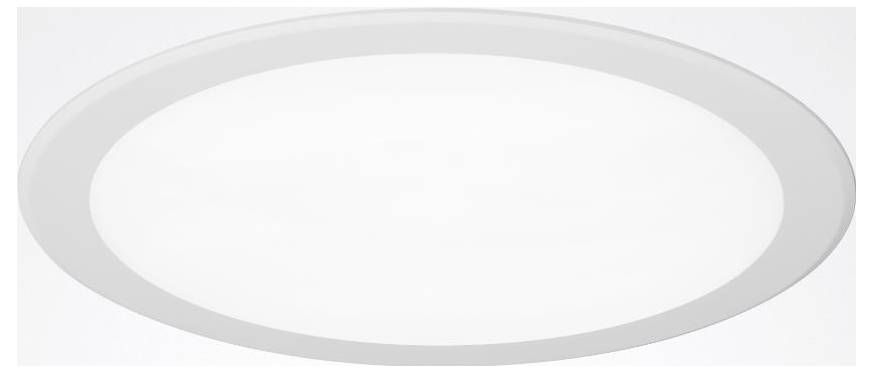

Trilux 7791240 2325 G3 C07 #7791240 LED ceiling spotlight Multicolour
EAN:
Part number:
Item no:
Technical specifications
- Width 230 mm
- Number of poles: 3
- Protection class (IP) IP20
- Surface protection: Untreated
- Protection class: I
- Impact strength: IK03
- Housing material: Plastic
- Protection class (NEMA): Other
- Length: 270 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Free-radiation/diffuse
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Colour temperature adjustable: Levels
- Luminous flux can be set: Stages
- Adjustable radiation angle: No.
- Height/depth 43 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 19 W
- Luminous flux: 2000 lm
- Rated light current according to IEC 62722-2-1: 2000 lm
- Installation height/depth 43 mm
- Installation diameter 200 mm
- Coverage of lights possible with heat insulation material: Yes
- Operation via Bluetooth: No.
- Outer diameter: 230 mm
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Other
- Light distributor: Diffuser lens/-optic/-panel
- Color consistency (McAdam ellipse): SDCM4
- Ambient temperature according IEC62722-2-1: 25°C.
- Integrated emergency power supply: No.
- Light output 105 lm/W
- Power factor 0.95
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Version: Other
- S/N ratio (THD): 14
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Max. Number of lights circuit breaker B16: 25
- Max. Number of lamps line circuit breakers C16: 42
- Rated life L70/B50 at 25 °C: 50000 h
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Mounting length 270 mm
- Product type
LED ceiling spotlight
- Factory colour
Multicolour
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544652 Trilux 7791240 2325 G3 C07 #7791240 LED ceiling spotlight Multicolour
Description
LED downlight for ceilings with a hollow space dimension = 50 mm. Installation without tools by rapid assembly springs. Ceiling cut-out Ø 200 mm, installation depth 43 mm. With optional PMMA cover plate. With lambertian light intensity distribution. Light current adjustable in 3 levels, light color adjustable in 2 levels. Rated light current 750 lm - 2000 lm, rated power 8 W - 19 W, maximum light yield 108 lm/W. Light color: Warm white or neutral white, similar color temperature (CCT) 3000 K or 4000 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 4 SDCM. Average measuring life L70 (TQ 25 °C) = 50,000 h. The light source is interchangeable according to the eco-design requirements (EU) 2019/2020). Lamp body made of PC. White powder-coated ceiling ring (RAL 9016). Outer dimensions of ceiling ring Ø 230 mm, light height 43 mm. Permissible ambient temperature (ta): 25 °C to +. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 0.5 kg With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
