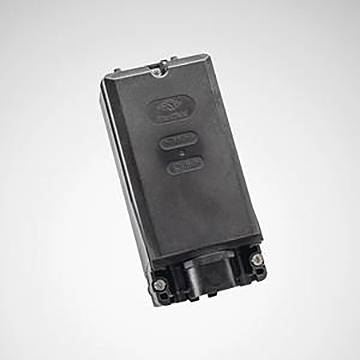

Trilux 7918600 Cable junction box 1 pc(s)

Cable junction box made of glass fiber reinforced polycarbonate. 1 to 3 cables of Ø 12 to Ø 24 mm. Additional 2 cable inputs on the bridge terminal up to Ø 12 mm. (Feed) 2 wires up to 6 mm² Earthing wires up to 4 mm². 1 or 2 cables up to 5 x 2.5 mm² alternatively 4 x single wires up to 2.5 mm² (consumer). With strain-relief clamp G fuse link up to 6.3 A. Length 180 mm, width 82 mm, height 66 mm. Protection class (EN 61140) II, protection class (DIN EN 60529): IP54.

This text is machine translated.
