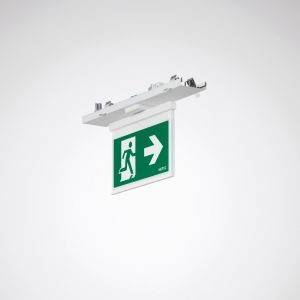

Trilux 7954440 Escape route lighting Emergency exit
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for the number of bulbs: 1
- LED bulb, replaceable
- Version: Other
- With bulb: Yes
- Material of housing: Steel
- Housing color: White
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer manufacturer-specific: No.
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distributor: Without
- Reflector: Without
- Light distribution: None
- Color consistency (McAdam ellipse): SDCM3
- Energy efficiency of the permanently installed light bulb: Other
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: Yes
- Light color: White
- Colour temperature: 5600 K
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Width 63 mm
- Height/depth 210 mm
- Length: 368 mm
- Dim
(L x W x H) 368.00 x 63.00 x 210.00 mm
- Product type
Escape route lighting
- Motif
Exit
- Type
Emergency exit
- Type
Plastic
- Backlit
Yes
- Operating voltage
24 V
- Detection range
20 m
- Weight
0.9 kg
1.2 W
- Bulb type
LED (monochrome)
- Material
Steel
- Width
63.00 mm
- Height
210.00 mm
- Depth
210 mm
- Description
LED-Rettungszeichen-Scheibenleuchte zur Fluchtwegkennzeichnung
- Signage text
Piktogramm zur Darstellung der Fluchtrichtung
- Factory colour
White
- Colour rendering index
80-89
- Length
368.00 mm
- Colour temperature (max.)
5600 K
- Colour temperature (min.)
5600 K
- No. of bulbs
1
- Colour
White
- Light bulb included
Yes
5600 K
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134086 Trilux 7954440 Escape route lighting Emergency exit
Description
Device holder for E-Line Next Fix light-band system with LED-escape-sign glass light for labeling the escape route. The glass light shall be equipped with a pictogram to be ordered separately to show the direction of escape. The equipment carriers with emergency lighting modules can be combined with a support profile concept through-pass wiring type 7LV + 7LV. With a 12 x 0.1 W LED module for a detection range of up to 20 m. Light yield . Light color [[**UNDEFINED VALUE**]], most similar color temperature (CCT) 5600 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Case glass light in white UV-resistant polycarbonate. Device carrier made of steel sheet, white coated (RAL 9016). Length of device carrier 368 mm. Weighs 0.9 kg. Self-activating electrical connection through contact pins with phase selection. The phase selection is done without any tools. For use in combination with an emergency lighting system type INOTEC with 24 V final circuit. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020).
