Trilux 7965840 7965840 LED ceiling light LED (monochrome) LED 24.00 W White
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED lamp 840, white Mondia G3 #7965840
- Power= 24.00 W
- Total luminous flux= 3200 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Free-radiation/diffuse
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 75000 h
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Protection class (IP) IP20
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: -20..25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Coverage of lights possible with heat insulation material: Yes
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 24 W
- Light output 133 lm/W
- Rated light current according to IEC 62722-2-1: 3200 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.3
- Color Rendering Index CRI: 80-89
- Power factor 0.9
- Strobe effect value SVM: 0.3
- Constant luminous flux regulation: No.
- Height/depth 138 mm
- External diameter: 512 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 3
- Connection type: Plug-in terminal
- S/N ratio (THD): 14
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 22
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Dim
(Ø x H) 512 mm x 138.00 mm
- Type
Circular
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED ceiling light
- Width
512 mm
- Bulb type
LED (monochrome)
- Height
138.00 mm
LED
- Rating per bulb
24.00 W
- Depth
138 mm
24.00 W
- (Ø)
512 mm
- Light features
Incl. switch
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Weight
3.5 kg
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
3200 lm
3200 lm
- Rated luminous flux
3200 lm
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3149077 Trilux 7965840 7965840 LED ceiling light LED (monochrome) LED 24.00 W White
Description

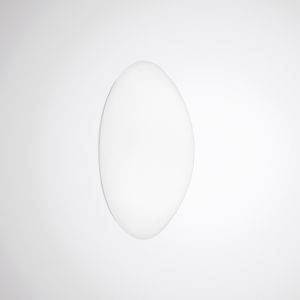

Round LED-attachment lamp with optional, spherical shaped PMMA-cover plate, light diameter 512 mm. The easy-to-mount decorative ring is available as an optional accessory in standard colors and can also be supplied in custom colors on request. Developed and manufactured in Germany. For wall or ceiling mounting. With diffuse-wide radiating light intensity distribution, predominantly direct. With a light indirect part for surface brightening. Rated light current 3200 lm, rated power 24.00 W, light output 133 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 50,000 h, average rated life L70(TQ 25 °C) = 75,000 h. The light source is replaceable according to eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate White surface coating (RAL 9016). Diameter of covering pan Ø 512 mm, lamp height 138 mm. Permissible ambient temperature (ta): - +25 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 3.5 kg The connection is made via a plug-in terminal with mains forwarding equipment. With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
