Buy Trilux 8104140 8104140 LED tape light 29 W LED (monochrome) White 1 pc(s)

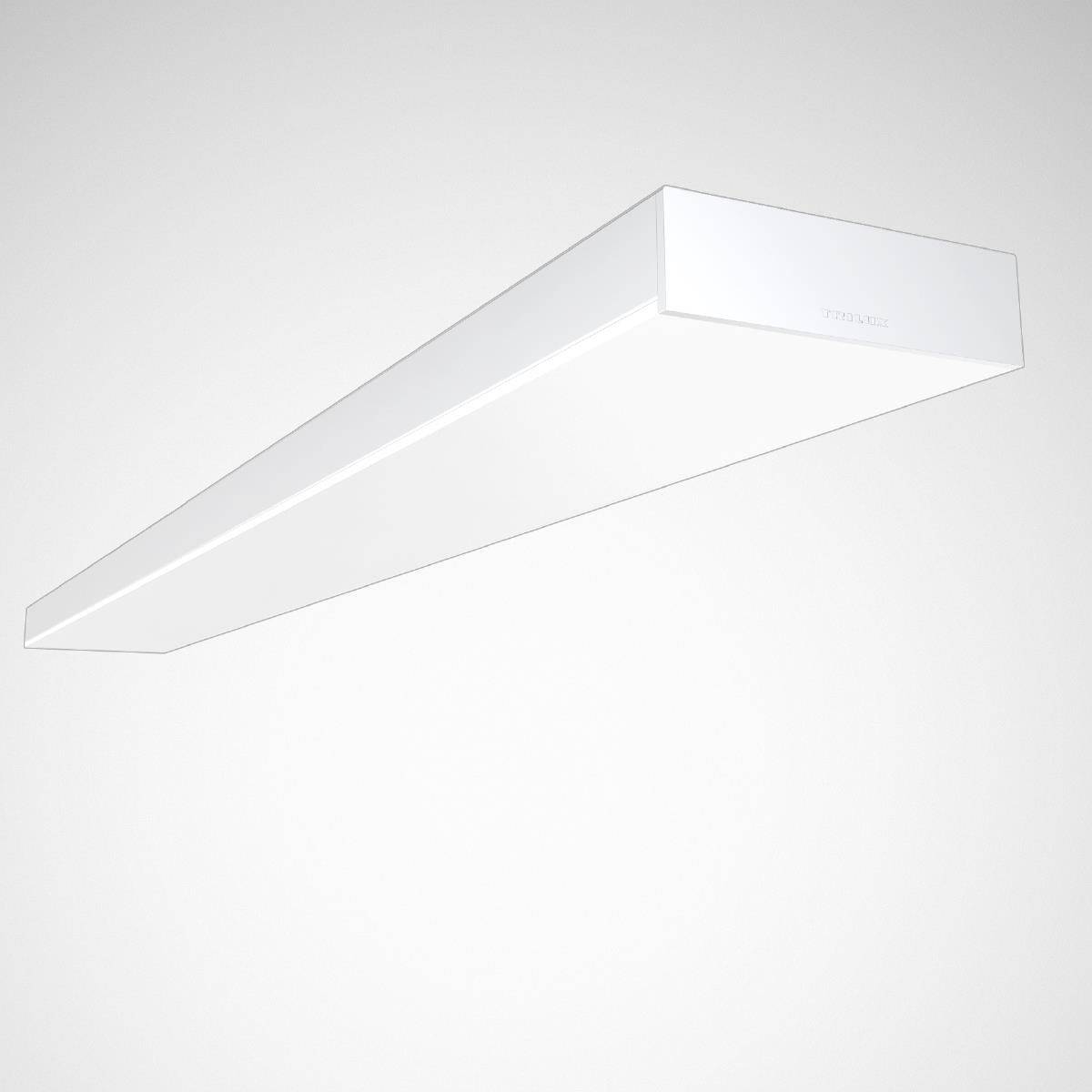

A modern, rectangular ceiling light with a simple design and smooth, white surface, perfect for minimalist interiors.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for pendulum suspension: Yes
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: Yes
Workplace training material - EN 12464-1: Yes
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Other
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: No.
Without dimming function: Yes
Light distributor: Other
Light distribution: Symmetric
Radiation angle: Wide radiation 41-80°
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Energy efficiency of the permanently installed light bulb: Other
Max. Number of lights circuit breaker B16: 30
Max. Number of lamps line circuit breakers C16: 44
Protection class (IP) IP20
Protection class (NEMA): Other
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Ambient temperature according IEC62722-2-1: 25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Coverage of lights possible with heat insulation material: Yes
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 29 W
Light output 124 lm/W
Rated light current according to IEC 62722-2-1: 3600 lm
Light color: White
Colour temperature: 4000 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.95
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Width 160 mm
Height/depth 48 mm
Length: 1127 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG0
Glare limiter (UGR): 19
Adjustable color temperature: No.
Luminous flux can be set: Stages
Adjustable radiation angle: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Product type: LED tape light

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 29 W

: 29 W

: 4000 K

Colour: White

: 3600 lm

Total luminous flux: 3600 lm

Light features: Selectable luminous flux

Test mark: DIN 10500

: IP20

Protection class: I

Factory colour: White

Material: Steel

Dim: (L x W x H) 1127.00 x 160.00 x 48.00 mm

: n.rel.

Type: Rectangular

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 160.00 mm

Height: 48.00 mm

Length: 1127.00 mm

Rated luminous flux: 3600 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3149084 Trilux 8104140 8104140 LED tape light 29 W LED (monochrome) White 1 pc(s)

Description

Rectangular LED ceiling mounted light with full-area, borderless PMMA cover. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). Mounting light for ceiling mounting in interiors. For single or light band applications by means of accessories to be ordered separately. Suitable for executing through wiring. With an inner microprismatic cover plate as well as a smooth, opal PMMA cover on the side of the room. With balanced wide beam of light intensity distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. According to EN 12464-1-2-5 by limited luminance L = 3000 cd/m2 for radiation angle above 65 ° all round. Light flux adjustable in 4 levels. Rated light current 2000 lm - 3600 lm, rated power 17.00 W - 29.00 W, maximum light yield 127 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate, white powder-coated (RAL 9016). Dimensions (L x B) 1127 x 160 mm, lamp height 48 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 4.0 kg With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.

This text is machine translated.
