Image similar

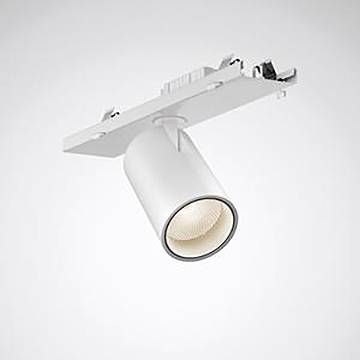

Trilux 8312463 7651 LentyP #8312463 LED device mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Width 84 mm
- Number of poles: 3
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: I
- Impact strength: IK00
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Length: 368 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- Bulb: LED not replaceable
- Emission angle: Narrow beam 11 - 20°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Colour temperature: Other
- Constant luminous flux regulation: No.
- Colour temperature: 3100 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 172 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Rotation and swivel
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: Yes
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 30 W
- Luminous flux: 2660 lm
- Rated light current according to IEC 62722-2-1: 2660 lm
- Coverage of lights possible with heat insulation material: Yes
- Operation via Bluetooth: Yes
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Other
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM2
- Ambient temperature according IEC62722-2-1: 25°C.
- Integrated emergency power supply: No.
- Light output 89 lm/W
- Power factor 0.95
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Version: Other
- Reflector color: Silver
- S/N ratio (THD): 10
- Lamp with limited surface temperature "D-sign": No.
- Glow wire test according to IEC 60695-2-11: Without
- Photobiological safety according to EN 62471: RG1
- Max. Number of lights circuit breaker B16: 50
- Max. Number of lamps line circuit breakers C16: 85
- Product type
LED device mount
IP20
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3542031 Trilux 8312463 7651 LentyP #8312463 LED device mount 1 pc(s)
Description
Device carrier for E-Line 7651 Fix light band system with busbar spotlight for accent lighting, 355 ° rotatable and 100 ° swiveling. With CASAMBI module for integration into a non-wireline mesh network of up to 250 subscribers. The system is commissioned with the Casambi APP (iOS and Android). Radio range of the radio module under ideal conditions: 10.0 m. The radio range can depend on factors of influence of the environment (e.g. walls, ceilings, floors, machines, steel beams, live cables) must be varied. The radio range can be increased by an additional radio module, which is used as a repeater. For combination with support profiles E-Line Fix 0765... With separation plug-distance of 375 mm, suitable for IP20 Compatible with carrier profiles E-Line T5N/LED 07650 As single or light band lamp for direct ceiling mounting as well as suspended mounting by means of accessories to be ordered separately. Attachment to the supporting profile by tool-free operable stainless steel snap locks. The correct mounting of the device carrier with the support profile is confirmed by a click-in sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after a successful installation and thus ensure theft and dismantling protection. Optics in Convision® technology with LED lenses and dipped chutes. Emission characteristics Flood. Beam angle 34°. Light flux and color temperature are preset. Rated light current 2660 lm, rated power 30 W, maximum light yield 89 lm/W. Colour temperature (CCT) 3100 K Brilliant color, color rendering index (CRI) Ra > 95. Color site tolerance (initial Macadam) = 2 SDCM. Test life L80/B10 (TQ 25 °C) = 50,000 h. Device carrier made of steel plate. Directional spotlight made of aluminum die-cast, structure-powder-coated. White surface coating (similar to RAL 9016). Permissible ambient temperature (ta): 25 °C +. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, protection class from room: IP20. Weight: 1.2 kg Self-activating electrical connection through contact pins with phase selection. The phase selection is done without any tools. With Bluetooth Low Energy operating device (BLE). The lamp is Monitoring Ready (MOR) and provides lamp data for monitoring or predictive maintenance. It is therefore compatible with the TRILUX digital services (Energy Monitoring and Light Monitoring). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
