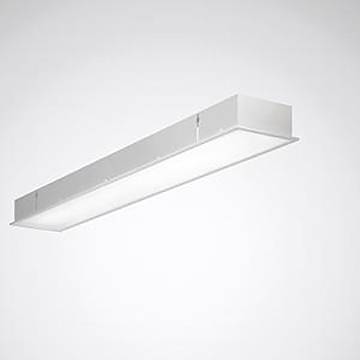

Trilux 8413063 Opendo M39 #8413063 LED recessed light
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED recessed light 840, BLE OPENDO M39 #8413063
Technical specifications
- Width 184 mm
- Number of poles: 3
- Protection class (IP) IP20
- Mounting width 167 mm
- Protection class: I
- Impact strength: IK03
- Material of housing: Steel
- Protection class (NEMA): Other
- Length: 1547 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Height/depth 90 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 32 W
- Rated light current according to IEC 62722-2-1: 4200 lm
- Installation height/depth 160 mm
- Coverage of lights possible with heat insulation material: Yes
- Operation via Bluetooth: Yes
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Surface protection housing: Powder-coated
- Cover material: Other
- Design of grid: Without
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM3
- Ambient temperature according IEC62722-2-1: 25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With air vents: No.
- Light output 131 lm/W
- Power factor 0.95
- Version: Other
- S/N ratio (THD): 14
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Mounting length 1530 mm
- Product type
LED recessed light
n.rel.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546858 Trilux 8413063 Opendo M39 #8413063 LED recessed light
Description
Rectangular LED recessed lamp with full-area, borderless PMMA cover. Model M39 (185 mm x 1550 mm). With CASAMBI module for integration into a non-wireline mesh network of up to 250 subscribers. The system is commissioned with the Casambi APP (iOS and Android). Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. For use in system ceilings with visible mounting rails and in conjunction with accessories to be ordered separately, also suitable for installation in system ceilings with covered mounting rails and sawn ceiling openings (Creavo/Opendo ZBB, 1144900) or for installation in panel ceilings module 100 (Creavo/Opendo M36/37 Panel M100, 8498400 or Creavo/Opendo M38/39 Panel M100, 8498500). Mounting in sawing openings with the help of mounting accessories requires a cover material thickness of min. 18 mm. Further information on installing the lamp and its attachment can be found in the assembly instructions. With an inner microprismatic cover plate as well as a smooth, opal PMMA cover on the side of the room. With balanced, broad beam distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. According to EN 12464-1-2-5 by limited luminance L = 3000 cd/m2 for radiation angle above 65 ° all round. Light flux and color temperature are preset. Rated light current 4200 lm, rated power 32 W, maximum light yield 131 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Light fixtures made of steel plate White surface coating (similar to RAL 9016). Dimensions (L x B) 1547 x 184 mm, lamp height 90 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 6.2 kg With Bluetooth Low Energy operating device (BLE). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center. Lamp 10 years, spare parts (LED module, operating device, optical system) available 15 years after date of invoice subject to reasonable changes to the progress.
