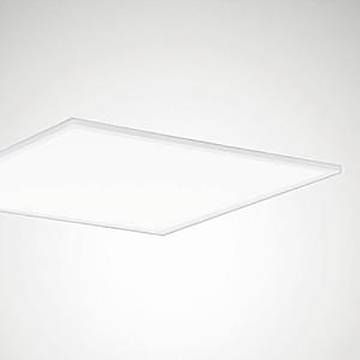

Trilux 8423240 ValineoG4 #8423240 LED recessed light
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED recessed lamp 840, ML ValineoG4 #8423240
Technical specifications
- Width 595 mm
- Number of poles: 3
- Protection class (IP) IP20
- Mounting width 595 mm
- Protection class: I
- Impact strength: IK03
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Length: 595 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: Stages
- Height/depth 35 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 34 W
- Rated light current according to IEC 62722-2-1: 4600 lm
- Installation height/depth 130 mm
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Surface protection housing: Powder-coated
- Cover material: Other
- Design of grid: Without
- Light distributor: Other
- Color consistency (McAdam ellipse): SDCM3
- Ambient temperature according IEC62722-2-1: 25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With air vents: No.
- Light output 135 lm/W
- Power factor 0.9
- Version: Other
- S/N ratio (THD): 14
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Max. Number of lights circuit breaker B16: 42
- Max. Number of lamps line circuit breakers C16: 70
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Mounting length 595 mm
- Product type
LED recessed light
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543751 Trilux 8423240 ValineoG4 #8423240 LED recessed light
Description
LED panel-mounted light with microprismatic cover. Design M73 (600 mm x 600mm). Fall-safety cable included in the delivery. Insert light for ceilings with visible mounting rails. In combination with accessories to be ordered separately, the light is also suitable for use on-board mounting. Further information on installing the lamp and its attachment can be found in the assembly instructions. Microprismatic plate made from PMMA. With balanced, broad beam distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. According to EN 12464-1-2-5 by limited luminance L = 3000 cd/m2 for radiation angle above 65 ° all round. Harmonic light effect due to the uniformly lit light output. Light current can be set in 4 levels. Rated light current 3800 lm - 5000 lm, rated power 26.00 W - 38.00 W, maximum light yield 169 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Frame made of aluminum, steel body at the rear. White surface coating (similar to RAL 9016). Dimensions (L x B) 595 x 595 mm, lamp height 35 mm. Protection class on the room side IP44. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 2.1 kg Can be switched with an electronic operating device. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Output Ripple of operating device = 4% for effective control of LED system and flicker-free light. The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
