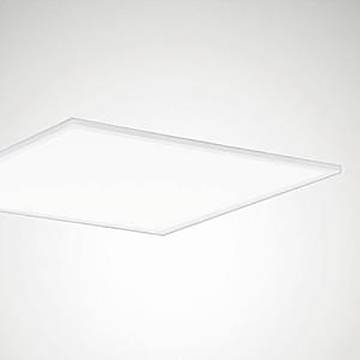

Trilux 8423862 ValineoG4 M #8423862 LED recessed light
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED panel-mounted light TW, DALI ValineoG4 M #8423862
Technical specifications
- Width 595 mm
- Number of pins: 5
- Protection class (IP) IP20
- Mounting width 595 mm
- Protection class: II
- Impact strength: IK03
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Length: 595 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Height/depth 35 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming touch and dim: Yes
- Zigbee dimming: No.
- Dimming with Push-button: Yes
- Without dimmer function: No.
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 33 W
- Rated light current according to IEC 62722-2-1: 4200 lm
- Installation height/depth 130 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Surface protection housing: Powder-coated
- Cover material: Other
- Design of grid: Without
- Light distributor: Other
- Color consistency (McAdam ellipse): SDCM3
- Ambient temperature according IEC62722-2-1: 25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With air vents: No.
- Light output 127 lm/W
- Power factor 0.9
- Version: Other
- S/N ratio (THD): 14
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Max. Number of lights circuit breaker B16: 35
- Max. Number of lamps line circuit breakers C16: 55
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Mounting length 590 mm
- Product type
LED recessed light
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547406 Trilux 8423862 ValineoG4 M #8423862 LED recessed light
Description
LED panel-mounted light with microprismatic cover. Design M73 (600 mm x 600mm). Fall-safety cable included in the delivery. Insert light for ceilings with visible mounting rails. In combination with accessories to be ordered separately, the light is also suitable for use on-board mounting. Further information on installing the lamp and its attachment can be found in the assembly instructions. Microprismatic plate made from PMMA. With balanced, broad beam distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. According to EN 12464-1-2-5 by limited luminance L = 3000 cd/m2 for radiation angle above 65 ° all round. Harmonic light effect due to the uniformly lit light output. With Tunable White technology for color temperature control by means of a separate control system (DT8). Rated light current 4200 lm - 4200 lm, rated power 33.00 W - 32.00 W, maximum light yield 131 lm/W. Light color Tunable White (warm white - daylight white), similar color temperature (CCT) Tunable White (2700 K - 6000 K), general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Frame made of aluminum, steel body at the rear. White surface coating (similar to RAL 9016). Dimensions (L x B) 595 x 595 mm, lamp height 35 mm. Protection class on the room side IP44. Protection class (EN 61140): II, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 2.3 kg With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). Switch and dimmable light using button function with DALI control terminals (Touch DIM). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Output Ripple of operating device = 4% for effective control of LED system and flicker-free light. The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
