Trilux 9002072947 7651 HE #9002072947 LED device mount 60 W LED (monochrome) White 1 pc(s)

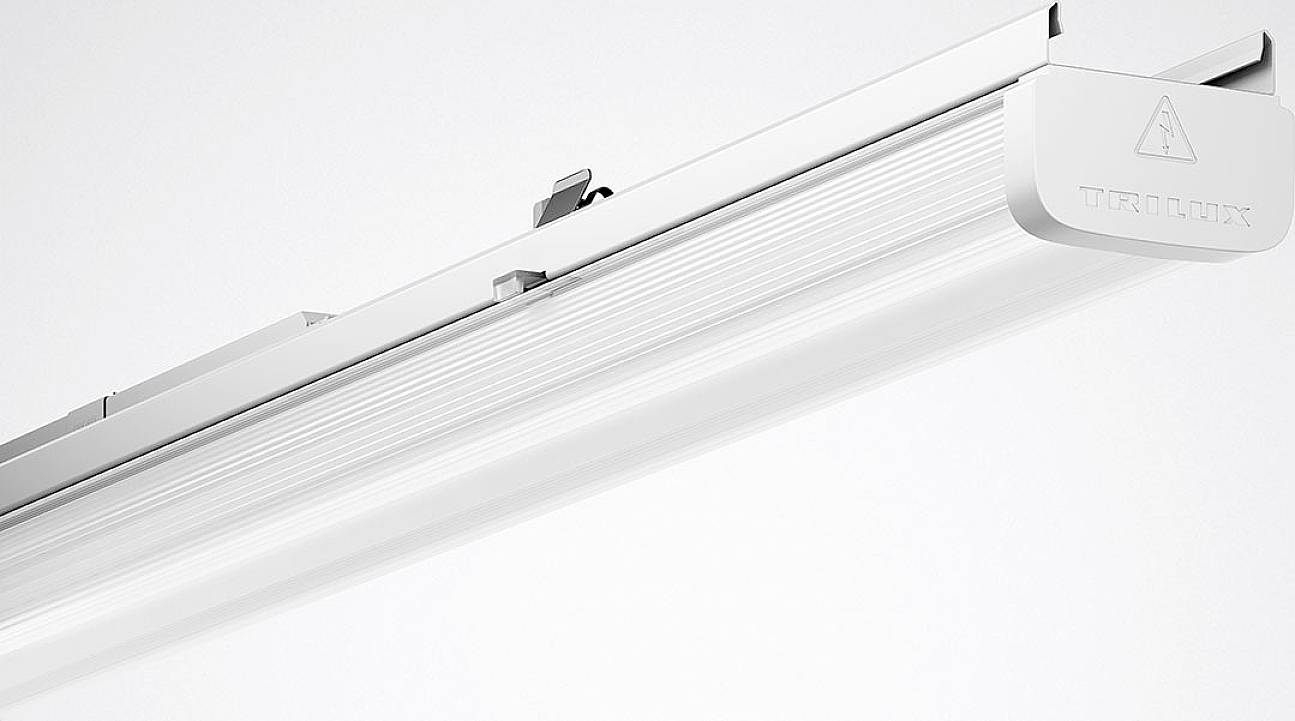

A white LED light fixture in close-up, which has an elongated shape and is mounted on the ceiling or a structure.

A white LED light fixture in close-up, which has an elongated shape and is mounted on the ceiling or a structure.

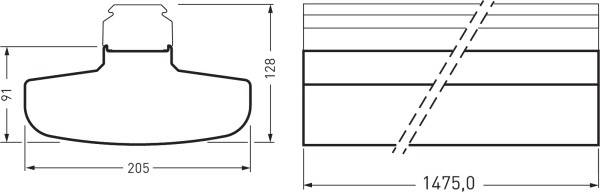

Technical drawing of a cross-section of an object with dimensions: width 205 mm, height 91 mm; including side view of 1475 mm length and 128 mm height.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LED device mount

Operating voltage: 220 V
240 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 57 W

: 60 W

: 3000 K

Colour: White

: 10000 lm

Total luminous flux: 10000 lm

Light features: Dimmable

Test mark: ENEC-zertifiziert

: IP20

Protection class: I

Factory colour: White

Material: Steel

Dim: (L x W x H) 1475 x 205 x 116 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Width: 205 mm

Height: 116 mm

Length: 1475 mm

Light bulb included: Yes

Radiation angle: 80°

UKCA: not relevant
