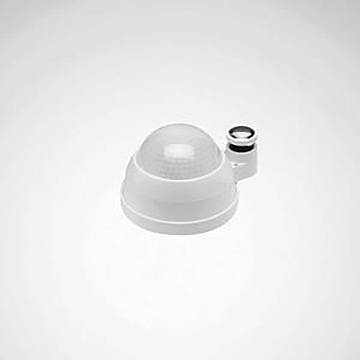

Trilux 9415300 Surface-mount Motion detector 360 °
EAN:
Part number:
Item no:
Technical specifications
- IFTTT support available: No.
- Product type
Motion detector
- Detection angle
360°
- Used at
Indoors
- Mounting type
Surface-mount
- Height
76 mm
- (Ø)
101 mm
- Dim
(Ø x H) 101 mm x 76 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552252 Trilux 9415300 Surface-mount Motion detector 360 °
Description
Passive infrared (PIR) motion sensor. Surface-mounted sensor for indoor use. DALI-2 sensor systems. For integration in a light management system. Suitable for use in halls with narrow aisles and high installation height e.g. high-bay warehouse Functions: Test mode, semi-automatic / full automatic mode, button / switch mode, manual mode . Commissioning and parameterisation are carried out using a remote control that must be ordered separately. Detection angle: 360° Oval detection range Detection range, depending on mounting height approx. 30.0 x 19.0 m (570 m²). Recommended installation height 5.0 - 16.0 m. Number of DALI participants: 4. Temperature range: -20 to +50 oC :Protection class: IP20. Made of plastic, color white. Outer diameter Ø 101 mm, height 76 mm.
