Buy Trilux Acuro S #6065340 6065340 LED mirror light

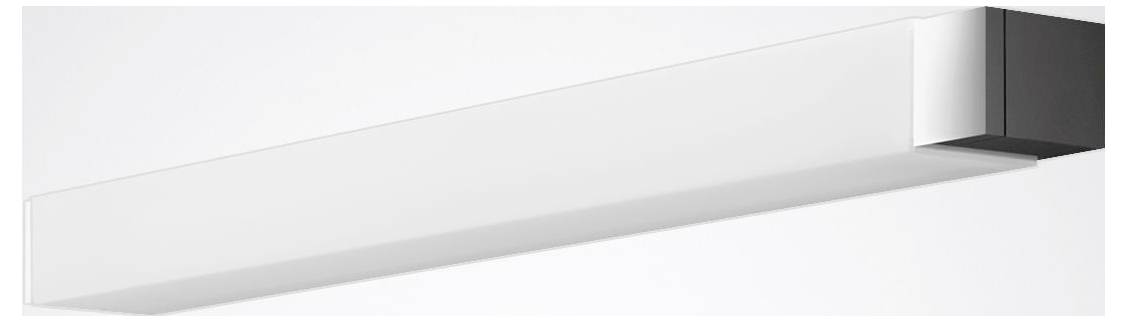

Rectangular overhead LED light fixture on a plain white background.

Image similar

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Width 54 mm
Number of poles: 3
Protection class (IP) IP40
Protection class: I
Impact strength: IK02
Material of housing: Aluminium
Protection class (NEMA): Other
Length: 638 mm
Nominal voltage 220..240 V
Connection type: Plug-in terminal
Voltage type AC
LED bulb, replaceable
Radiation angle: Free-radiation/diffuse
Operating device: Electronic transformer
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Constant luminous flux regulation: No.
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Height/depth 85 mm
Type of wiring: Suitable for through-wiring
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Housing color: Chrome
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light distribution: Symmetric
Light emission: Direct/indirect
Max. System power 8 W
Rated light current according to IEC 62722-2-1: 1000 lm
Coverage of lights possible with heat insulation material: Yes
Operation via Bluetooth: No.
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Surface protection housing: Powder-coated
Cover material: Other
Design of grid: Without
Light distributor: Diffuser lens/-optic/-panel
Color consistency (McAdam ellipse): SDCM3
Rated ambient temperature according to IEC62722-2-1: -20..25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With air vents: No.
Light output 125 lm/W
Power factor 0.9
Version: Other
S/N ratio (THD): 14
Lamp with limited surface temperature "D-sign": No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Photobiological safety according to EN 62471: RG0
Max. Number of lights circuit breaker B16: 50
Max. Number of lamps line circuit breakers C16: 84
Glare limiter (UGR): 22
Flicker value PST LM: 0.3
Strobe effect value SVM: 0.3

Product type: LED mirror light

: n.rel.

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3548126 Trilux Acuro S #6065340 6065340 LED mirror light

Description

LED-mounted lights for ceiling and wall mounting. Head piece with integrated rocker switch. For horizontal or vertical mounting. With PMMA trough, optional Fine-structured surface. With lambertian light intensity distribution. Light flux and color temperature are preset. Rated light current 1000 lm, rated power 8 W, maximum light yield 125 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Light fitting made of extruded aluminum. With rear integrated cable channel for cable routing in case of lengthways wall outlet. . Dimensions (L x B) 638 x 54 mm, lamp height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class for wall mounting IP44, protection class for ceiling mounting IP40. Protection class (EN 61140): I, shock resistance according to IEC 62262: , Test temperature of glow wire test according to IEC 60695-2-11: 650 °C. Weighs 1.5 kg Can be switched with an electronic operating device. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center. Lamp 10 years, spare parts (LED module, operating device, optical system) available 15 years after date of invoice subject to reasonable changes to the progress.

This text is machine translated.
