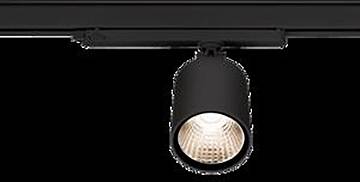

Trilux BV G2 3PTD #8432451 LED track spotlight
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED spotlights 830, DALI, black BV G2 3PTD #8432451
Technical specifications
- Width 91 mm
- Number of pins: 5
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: II
- Impact strength: IK00
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Length: 265 mm
- Nominal voltage 220..240 V
- Connection type: Other
- Voltage type AC
- Bulb: LED not replaceable
- Radiation angle: Medium radiation 21-40°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 151 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Rotation and swivel
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Black enclosure
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 36 W
- Luminous flux: 4800 lm
- Rated light current according to IEC 62722-2-1: 4800 lm
- Coverage of lights possible with heat insulation material: Yes
- Operation via Bluetooth: No.
- Outer diameter: 91 mm
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Other
- Light distributor: Reflector
- Color consistency (McAdam ellipse): SDCM2
- Ambient temperature according IEC62722-2-1: 25°C.
- Integrated emergency power supply: No.
- Light output 133 lm/W
- Power factor 0.95
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Version: Other
- Reflector color: Silver
- S/N ratio (THD): 20
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:960°C - 30 s.
- Photobiological safety according to EN 62471: RG1
- Max. Number of lights circuit breaker B16: 53
- Max. Number of lamps line circuit breakers C16: 85
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Product type
LED track spotlight
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549569 Trilux BV G2 3PTD #8432451 LED track spotlight
Description
Power rail spotlights with subtly reduced lamp design in small size. Attachment to 3-phase power rails in accordance with DIN EN 60570 by means of integrated 3-phase bus bar adapter. For integration in Nordic Global busbars. Can be pivoted by 90° and rotated by 355°. Optical system with 3D facet reflector. Emission characteristics Medium-flood Beam angle 24°. Light flux and color temperature are preset. Rated light current 4765 lm, rated power 36 W, light color warm-white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 80. Rated life L80/B10 (TQ 25 °C) = 50,000 h. Light body made of die-cast aluminum. Black coating on the surface (similar to RAL 9005). Light dimensions (L x B x H) 265 x 91 x 151 mm Protection class (EN 61140) II, protection class (DIN EN 60529) IP20. Weighs 0.9 kg. The driver is integrated in the bus bar adapter. Nominal voltage of the light is 230 V, 50/60 Hz. With electronic operating device, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
