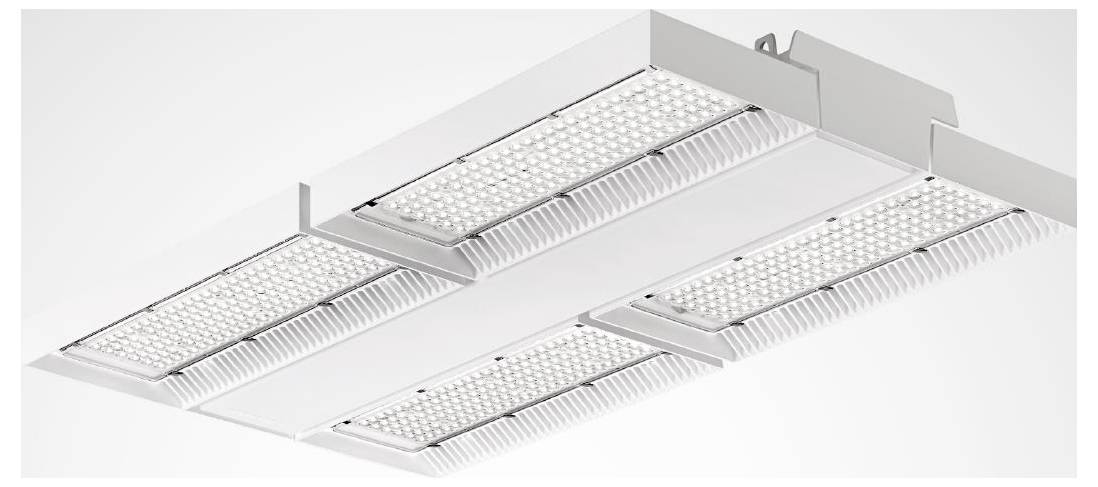

Image similar
Image similar
Trilux Mirona Fit #7706751 7706751 LED hall light
EAN:
Part number:
Item no:
Technical specifications
- Width 342 mm
- Number of pins: 5
- Mounting type: Pendulum
- Protection class (IP) IP65
- Protection class: I
- Impact strength: IK08
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Length: 649 mm
- Nominal voltage 230..240 V
- Connection type: Other
- Voltage type AC
- Bulb: LED not replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 6500 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 63 mm
- With protective cover: No.
- Type of wiring: Finish
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Max. System power 208 W
- Rated light current according to IEC 62722-2-1: 35000 lm
- Operation via Bluetooth: No.
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM3
- Rated ambient temperature according to IEC62722-2-1: -30..50°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Light output 168 lm/W
- Power factor 0.95
- Version: Other
- S/N ratio (THD): 14
- Lamp with limited surface temperature "D-sign": Yes
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Photobiological safety according to EN 62471: RG1
- Max. Number of lights circuit breaker B16: 4
- Max. Number of lamps line circuit breakers C16: 6
- Suitable for side lighting: No.
- Material of the reflector: Other
- Rated life L70/B50 at 25 °C: 100000 h
- Suitable for sports facilities: No.
- Product type
LED hall light
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552887 Trilux Mirona Fit #7706751 7706751 LED hall light
Description
Robust LED hall spotlight Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in rooms with fire hazard according to DIN EN 60598-2-24. Suitable for ceiling mounting as well as suspended mounting via optional accessories. Optical system comprising of a PC lens optics. With balanced wide beam of light intensity distribution. Light flux and color temperature are preset. LED system consists of 4 LED modules, mounted on aluminum carriers. Rated light current 35000 lm, rated power 198 W, maximum light yield 177 lm/W. Colour temperature daylight white, similar color temperature (CCT) 6500 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. Sturdy aluminum die-cast body with integrated cooling fins. White surface coating (similar to RAL 9016). Dimensions (L x B) 649 x 342 mm, lamp height 63 mm. Permissible ambience temperature (ta): -30 °C - +50 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weighs 7.2 kg With 5-pin connector cable 5 x 0.75 mm2 (1500 mm) With 2 electronic operating devices, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center. Lamp 10 years, spare operating unit 15 years after date of invoice, available subject to reasonable changes that serve the progress. Spare parts LED module and optical system are not available due to the design.
